RS485 TCP IP Glass Barrier Gate DC24V BLDC Turnstile Entrance Gates
  • RS485 TCP IP Glass Barrier Gate DC24V BLDC Turnstile Entrance Gates
  • RS485 TCP IP Glass Barrier Gate DC24V BLDC Turnstile Entrance Gates

RS485 TCP IP Glass Barrier Gate DC24V BLDC Turnstile Entrance Gates

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Material:
SS304/316/ Carbon Steel
Flap Height:
1.4m (default)
Pass Speed:
30 Person/minute
Passage Width:
550mm Max.
Motor Type:
BLDC Motor
Motor Voltage:
DC24V
High Light:

TCP IP Glass Barrier Gate

,

RS485 Glass Barrier Gate

,

DC24V BLDC Turnstile Entrance Gates

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

RS485 TCP/IP Interface Slide Type Body Height Glass Barrier Speed Gate



PRODUCT DESCRIPTION



The Sliding Barrier Turnstile Speed Gate offer a reliable and efficient method to ensure only authorized users

are allowed access to each area of a building. It is an attractive swing turnstile that is easily capable of handling

high volume and abusive conditions. The compact unit makes it simple to construct a multiple lane set-up while

the variety in colors allows you to match this turnstile perfectly to your lobby or branding.



The blocking body (gate wing) has a large area and a large blocking height, which is perpendicular to the

ground and realized by telescoping Stop and release. The material of the sliding gate is commonly used acrylic,

plexiglass, tempered glass, etc.

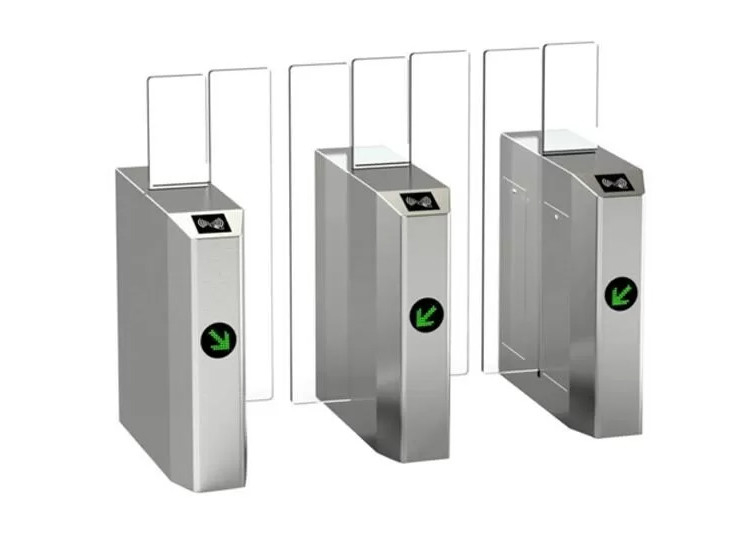

RS485 TCP IP Glass Barrier Gate DC24V BLDC Turnstile Entrance Gates 0

PRODUCT FUNCTION AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance



2. The running status can be programmed and controlled with the built-in keyboard on the main board



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset)



4. Anti-breakthrough function. The gate is locked automatically until opening signal received



5. Support infrared photocell for anti-pinch and reset function



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically



7. Gate can be set as normally open or normally closed



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller

needed)



9. Direction can be set as single-direction or bi-direction



10. LED direction indicator



11. Gate auto opens when power off and auto close when power on



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



PRODUCT SPECIFICATIONS



Model
SN-SLB02
Case Material
SS304, 1.2mm thickness
Production Process
CNC Laser Cutting
Size
1200*330*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
550mm
Flap height
1400mm(default)
Flap Material
Acrylic
Passage direction
Single directional/Bi-directional
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Reset Time after failure
10S
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~90%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA



High lights of our products



The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.


It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).



In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.
