Finger Print Access Control System MCBF 5,000,000 Cycles Automatic Sliding Barrier
PRODUCT DESCRIPTION

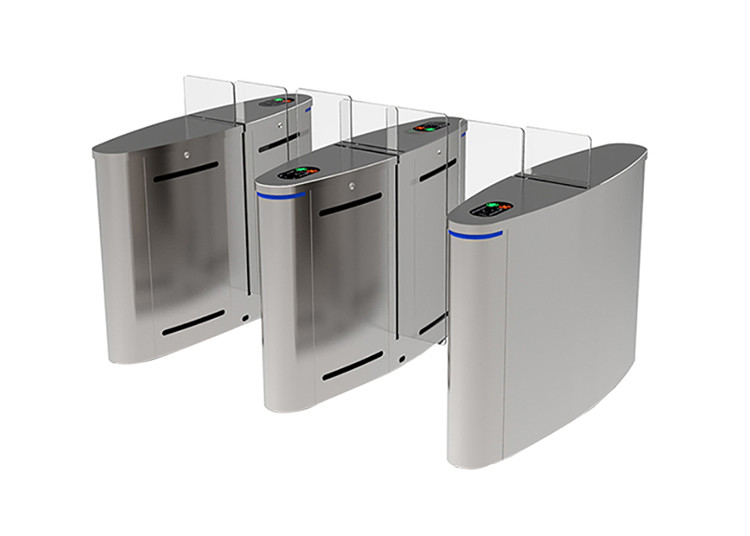

SINOMATIC automatic sliding barrier is designed to control pedestrians entering or exiting restricted areas,
usually used of high pedestrian traffic flow in both directions.
The body is made from brushed stainless steel which creates a seamless and elegant access point to blend
into most indoor environment.
Sliding turnstile gate is an upgraded products from tripod turnstile and swing barrier. It has standard electrical
interface which can be connected with ID cards, IC cards, magnetic cards, barcode cards etc.
The integration system ensures passing in order and will never allow unauthorized persons to go in or go out.
In case of emergency, the barrier arm will open automatically to allow free passage. Optical sliding barrier are
suit for elegant and luxury entrance solutions.
PRODUCT SPECIFICATIONS
Model No. | SN-SLB03 |
Framework Material | SS304 (SS316 optional) |
Dimension | 1200 * 330 * 980mm (can be customized) |
Net Weight | 85kg |
Passage Width | 550mm (One passage) |
Passing Direction | Single directional / Bi-directional |
Power Supply | AC220V/110V, 50/60Hz |
Operation Voltage | 24V DC |
Rated Power | 100W |
Operation Temperature | -20 °C – 60 °C |
Operation Humidity | 0 ~ 95% (No freeze) |
Working Environment | Indoor / Outdoor (Shelter) |
Flow Rate | 30 people per minute |
LED Indicator | Included |
Input | Dry contact/12V level signal |
Emergency | Automatic arm open when power off |
Communication | RS485, TCP/IP |
MAIN FUNCTIONS & FEATURES
1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.
2. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
3. When power off, barrier open automatically and power on again, barrier will close automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in
the control panel.
5. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system
will cancel the authority of the current user automatically.
6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from
the Swing barrier and then take a valid card to be read for passing.
7. Swing barrier is with 485 interface for long-distrance control concern.
8. Anti-rush function: If there is no open single, arm will be holding tightly.
9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going
through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm
will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop
working for a while with very slight force. Also it will alarm.
10. The barrier is with standard electrical interface for the integration of various readers and writers.
11. The barrier can count how many passenger has passed and will show it in the LED display(optional)
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
