Optical Passage Clear Acrylic Sliding Lane Barrier TCP IP For Pedestrian
  • Optical Passage Clear Acrylic Sliding Lane Barrier TCP IP For Pedestrian
  • Optical Passage Clear Acrylic Sliding Lane Barrier TCP IP For Pedestrian

Optical Passage Clear Acrylic Sliding Lane Barrier TCP IP For Pedestrian

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB03
Product Details
Barrier Height:
Standard 1500mm
Barrier Material:
Clear Acrylic
Power Consumption:
Max 100W
Power Supply:
AC 100V-240V
Sensor:
4 Pairs At Least
Housing Material:
SS304/SS316
High Light:

Clear Acrylic Sliding Lane Barrier

,

Optical Passage Sliding Lane Barrier

,

TCP IP Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

Optical Passage Full Automatic Mechanism Sliding Lane Barrier For Pedestrian



PRODUCT DESCRIPTION



  • Optical sliding barrier is designed to control pedestrians entering or exiting restricted areas, usually used of

high pedestrian traffic flow in both directions.

  • The body is made from brushed stainless steel which creates a seamless and elegant access point to blend

into most indoor environment.

  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and

Biometric device).

  • In case of emergency, the barrier arm will open automatically to allow free passage. Optical sliding barrier are

 suit for elegant and luxury entrance solutions.





PRODUCT SPECIFICATIONS



Model No. SN-SLB03
Framework Material 304 Stainless Steel

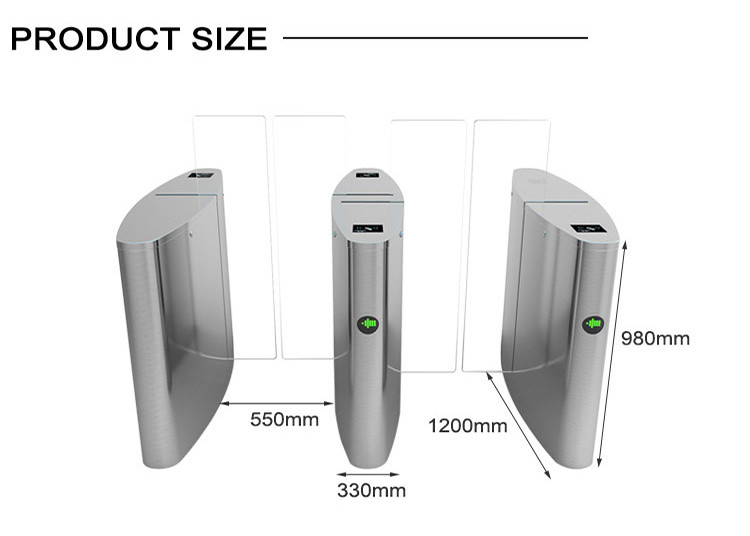

Dimension 1200 * 330 * 980mm
Net Weight 85kg
Passage Width 550mm (One passage)
Passing Direction Single directional / Bi-directional
Power Supply AC220V/110V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 40W
Operation Temperature -10 °C – 60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-40 people per minute
LED Indicator Yes
Input Dry contact/12V level signal
Emergency Automatic arm open when power off
Communication RS485, TCP/IP





Optical Passage Clear Acrylic Sliding Lane Barrier TCP IP For Pedestrian 0



MAIN FUNCTIONS & FEATURES



1. The whole system runs smoothly, long-life performance, high operation dependability and fast response.


2. Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.


3. When power off, barrier open automatically and power on again, barrier will close automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in

the control panel.


5. Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system

will cancel the authority of the current user automatically.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from

the Swing barrier and then take a valid card to be read for passing.


7. Swing barrier is with 485 interface for long-distrance control concern.


8. Anti-rush function: If there is no open single, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going

through the Swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm

will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop

working for a while with very slight force. Also it will alarm.


10. The barrier is with standard electrical interface for the integration of various readers and writers.


11. The barrier can count how many passenger has passed and will show it in the LED display(optional)


12. Direction display to guide passenger which direction is to go.


13. Card-reading with memory or without memory function.



PRODUCTION FLOW
