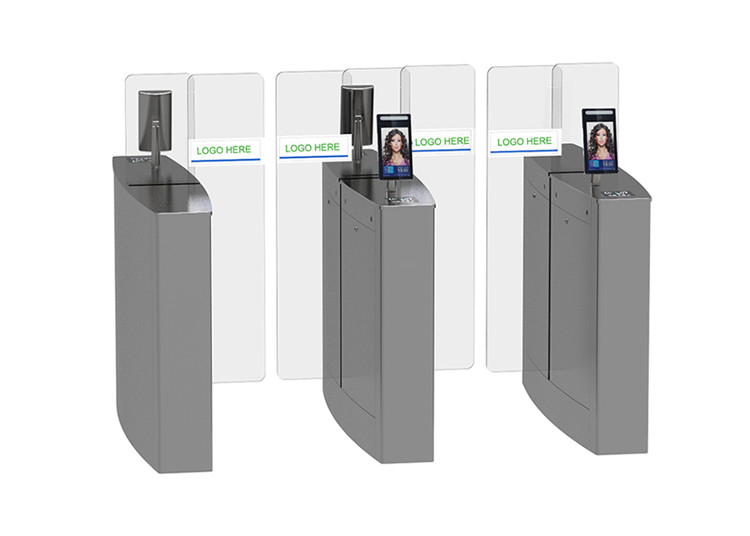

DC24V IP44 Automatic Barrier Gate Sliding For Office Building

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
IP Grade At Least IP44 Flap Height 1.4m (default)
Pass Speed 30 Person/minute Flap Color Clear
Passage Width 550mm Motor DC24V
High Light

IP44 Automatic Barrier Gate

,

DC24V Automatic Barrier Gate

,

Sliding Pedestrian Turnstile Gate

Leave a Message
Product Description

Stainless Steel 304 1.4 Meter Height Acrylic Color Optional Full Height Sliding Turnstile



Product description



Full height sliding barrier is designed to control pedestrians entering or exiting restricted areas, usually

used of high pedestrian traffic flow in both directions.



Intellgient sliding turnstile is the intelligent access management produced by our company after several years

R & D , this equipment organically integrate machinery electronics microprocessor control,and all kinds of different

reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting

reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing

the access intelligent control and management by the mutual coordination.



The blocking body (gate wing) has a large area and a large blocking height, which is perpendicular to the

ground and realized by telescoping Stop and release. The material of the sliding gate is commonly used acrylic,

plexiglass, tempered glass, etc.







Model
SN-SLB02
Case Material
SS304, 1.2mm thickness
Production Process
CNC Laser Cutting
Size
1200*330*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W( Brushless Motor Optional)
Electromagentic
Duty Cycle 100%
Passage Width
550mm
Flap height
1400mm(default)
Flap Material
Acrylic
Passage direction
Single directional/Bi-directional
Operating time
1S
Throughput Rate
30-40 persons/minute(Normally Closed) or 40 persons/(Normally Open)
Reset Time after Power on
3S
MCBF
5,000,000 Cycles
Reset Time after failure
10S
Automatic Reset Function
Automatically locked within set time(Time Adjustable)
Operation Humidity
0~90%(No Freezing)
Operation Temperature
-20℃~+60℃
Operation Eenvironment
Indoor,Outdoor(Shelter)
Protection Level
IP45
Communication Interface
Standard RS485 interface, distance ≤1200 meters
Input Interface
Relay switch signal or 12V electrical level signal or 12V pulse signal of pulse width > 100ms, drive current >10mA



High lights of our products



The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.


It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).



In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.



MAIN FUNCTIONS AND FEATURES



1. With zero self-check function, it is convenient for users to maintain and use.



2. Program operation mode of equipments through the little button inside the main board.



3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is

something in the way during the return/rest of the doors. If there is default time delay, it will have its second

return (till it comes back to where it should be), and the force is very weak



4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.



5. Doors can be adjusted into synchronization (only for double-locks)



6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time

allowed, system will cancel the right of pass for this time.



7. Adjust it to normal open or normal closed to meet the different requirements of different fields.



8. Can be linked to many kinds of card-reading equipments and work when it has received the signal of

electricity relay switch.



9. One-way and two-way in and out control of passenger



10. Carry out distant control and management by directly operating computer.



11. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds

after its opening.



12. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity

is linked. Meet the requirements of fire-fighting.



13. Sound and lights alarming: including break-in and opposite direction intrusion, and so on.



14. Counting function (optional)



15. Anti-Pinch function (four pairs of infrared)



Customized extended functions


1.Counting and alarm functions;
2. The material of the flap (retractable arm) is acrylic or soft flap. The colors are red, black and blue.

The amount can be customized separately
3. Case material is mainly 304 stainless steel, other materials can also be
customized
4.Remote control switch
5. Dynamic face recognition
6. Can add emergency escape function, in the case of special emergency, start by remote button
7. The communication interface is mainly RS232 / RS485, other interfaces
8.Box thickness standard 1.5mm can be customized 2.0mm
10. Fingerprint recognition of time attendance
11. QR code pass
