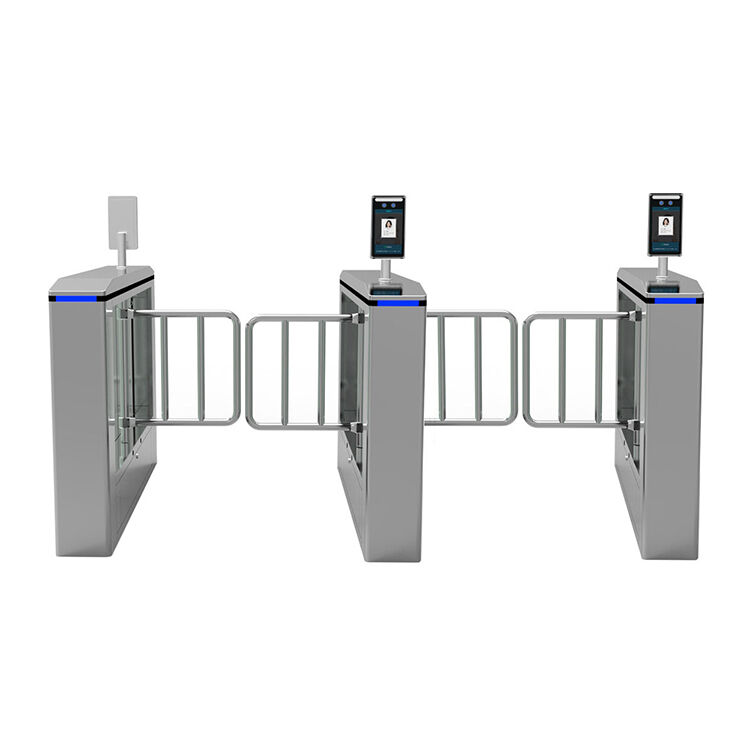

Fire Linkage Remote Control Swing Turnstile Gate with SS316 Acrylic Barrier

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	SN-SW03

Product Details

Arm Material:

SS304/ Acrylic

Surface Finishing:

Wire Drawing

Frame Material:

SS304/SS316 Optional

IP Grade:

IP44

Motor:

BLDC Motor

Pass Speed:

30 Person/minute

Highlight:

Fire Linkage Swing Turnstile Gate

Remote Control Swing Turnstile Gate

SS316 Pedestrian Barrier Gate

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Plywood box/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

T/T,Western Union,,L/C,D/A,D/P

Supply Ability

3,000pcs per month

Product Description

Fire Linkage Remote Control Swing Turnstile Gate SS316 Acrylic

Standard Access Interface, Fire Linkage And Remote Open-Close Function Swing Arm Turnstile

Product Specifications

Power Requirements	AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
Working Temperature	-20°C ~ 60°C
Working Humidity	5% ~ 95% (non-condensing)
Working Environment	Indoor / Outdoor (with shelter)
Lane Width	600mm to 1500mm
Infrared Sensor	Support
Dimension (LWH)	1200 * 300 * 980 (mm)
Dimension with Packing (LWH)	1300 * 400 * 1160 (mm)
Weight with Packing	80KG
LED Indicator	Support
Cabinet Material	SUS304 Stainless Steel
Lid Material	SUS304 Stainless Steel + Acrylic
Barrier Material	Acrylic
Barrier Movement	Swing

Main Functions and Features

Working method can be set by the buttons on the main panel
Anti-pinch, anti-collision with automatic motor stop and reset function (2Kg force)
Anti-illegal entry, anti-intrusion with auto-close for reverse direction
Anti-collision protection with automatic gate closure when no valid signal is detected
Gate protection functions to prevent motor damage from external force collisions
Synchronization capability for multiple lanes
Auto-reset function with adjustable timing (1-60 seconds, default 10s)
Reset function via photocells
Anti-pinch function via photocells
Standard electrical interface for integration with various readers and writers
Passenger counting with LED display (optional)
Direction display to guide passenger flow
Card-reading with or without memory function
Population control capability through software management

Applications

Intelligent Vertical Swing Turnstile compatible with IC card, ID card, barcode card, and fingerprint reading devices. Provides civilized, orderly access methods and effectively manages staff access. Widely used in stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring intelligent access management.

Frequently Asked Questions

Q1. How about some special design?

That's our advantage - we design new gates or barriers according to your specific requirements, including different sizes, software, and features. Video calls are available during the design process for real-time communication.

Q2. Do you have agency for after-sales service?

Any questions about delivery can be directed to our sales team. For installation, we provide instructional videos. For technical questions, we offer face-to-face video support to resolve issues promptly.

Q3. What time do you need to delivery?

Typically, common orders are delivered within 5-7 working days after payment, though this depends on order quantity. Delivery timelines are discussed before final payment.
