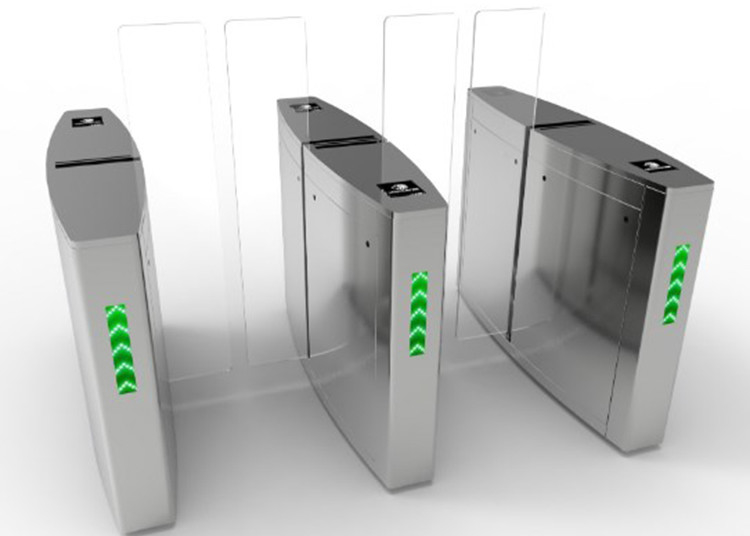

High Quality Stainless Steel Access Controlled BLDC Motor Barrier Gate Security System
Product description
Full height sliding gates, also called full-height wing gates, etc., are developed from flap barrier. They draw on
the characteristics of automatic gates. The blocking body (gate wing) has a large area and a large blocking height,
which is perpendicular to the ground and realized by telescoping Stop and release. The material of the sliding gate
is commonly used acrylic, plexiglass, tempered glass, etc.
Full height sliding barrier is designed to control pedestrians entering or exiting restricted areas, usually
used of high pedestrian traffic flow in both directions.
High lights of our products
The body is made from brushed stainless steel which creates a seamless and elegant access point to
blend into most indoor environment.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint
and Biometric device).
In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
Optical Turnstiles are suit for elegant and luxury entrance solutions.
Product specifications
Structure parameters | |
Housing material | 304 grade stainless steel |
Thickness | 1.5mm |
Surface treatment | Brushed finish |
Arm material | Acrylic |
Technical parameters | |
Size | 1200x330x1000mm |
Lane width | ≤550mm |
Passing speed | 30 people/min |
Open/close speed | 0.1--0.6sec |
Weight | 60KG |
infrared sensors | 4 pairs |
MCBF | 5.000.000 times |
Application | Indoor or outdoor |
Rotating directional | Single way or Bi-directional adjustable |
Noise | <55db |
Operating temperature | -20 to 60℃ |
Relative humidity | 5% to 95% |
Package | Wooden case |
Electronic parameters | |
Power supply | 100-240V/AC, 50/60HZ |
Rated power | 100W |
Input signal | Dry contact |
Driving motor | Brushless motor |
Method of position | Limiter |
MAIN FUNCTIONS AND FEATURES
1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance
and use.
2. Program operation mode of equipments through the little button inside the main board.
3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is
something in the way during the return/rest of the doors. If there is default time delay, it will have its second
return (till it comes back to where it should be), and the force is very weak
4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.
5. Doors can be adjusted into synchronization (only for double-locks)
6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time
allowed, system will cancel the right of pass for this time.
7. Adjust it to normal open or normal closed to meet the different requirements of different fields.
8. Can be linked to many kinds of card-reading equipments and work when it has received the signal of
electricity relay switch.
9. One-way and two-way in and out control of passenger
10. Carry out distant control and management by directly operating computer.
11. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds
after its opening.
12. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity
is linked. Meet the requirements of fire-fighting.
13. Sound and lights alarming: including break-in and opposite direction intrusion, and so on.
14. Counting function (optional)
15. Anti-Pinch function (four pairs of infrared)
