Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304
  • Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304
  • Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304

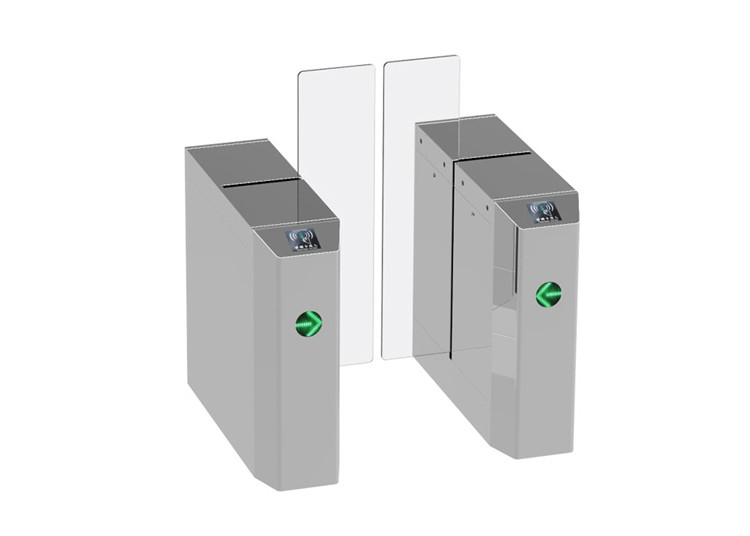

Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Flap Height:
1.2m To 1.6m
Flap Material:
Clear Acrylic
Flap Function:
Support LED Light
Motor Type:
DC Brushless Motor
Warranty:
12 Months
Sensor:
4 Pairs
High Light:

Pedestrian Full Height Sliding Turnstile

,

Acrylic Flap Full Height Sliding Turnstile

,

Ss304 Access Control Pedestrian Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

SINOMATIC Access Control System Pedestrian Safety Full Height Sliding Turnstile Security Barriers



PRODUCT DESCRIPTION



Sliding barriers offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It's is an



attractive speed gate turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to



construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.



FUNCTIONS AND FEATURES



1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance and use.



2. Program operation mode of equipments through the little button inside the main board.



3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is something in the way during the return



/rest of the doors. If there is default time delay, it will have its second return (till it comes back to where it should be), and the force is very weak



4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.



5. Doors can be adjusted into synchronization (only for double-locks)



6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time allowed, system will cancel the right of pass for this time.



7. Adjust it to normal open or normal closed to meet the different requirements of different fields.



8. Can be linked to many kinds of card-reading equipments and work when it has received the signal of electricity relay switch.



9. One-way and two-way in and out control of passenger



10. Carry out distant control and management by directly operating computer.



11. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds after its opening.



12. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity is linked. Meet the requirements

of fire-fighting.



13. Sound and lights alarming: including break-in and opposite direction intrusion, and so on.



14. Counting function (optional)



15. Anti-Pinch function (four pairs of infrared)



Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304 0



PRODUCT PARAMETER



Model No.
SN-SLB01
Cabinet Material
304 Stainless Steel
Dimensions
Cabinet:1200*330*1000mm
Motor Type
DC brushless
Weight
70KG
Arm Length
250-300mm
Passage Width
550-600mm
Dry Contact
12V
Material Thickness
1.5mm
Card-reading Window
Included
Direction
Bi-directional
Service Life
5 million times
Operating Temperature
-25℃ ~ +60℃
Related Humidity
≥90%RH
Power Supply
AC220V/110V ±10% 50/60MHZ (optional)
NO PASSING Speed
30-40 persons per minute
NC PASSING Speed
20-30 persons per minute



PRODUCT DIMENSION

Acrylic Flap Pedestrian Full Height Sliding Turnstile ss304 1
