High End 550mm Channel RFID Card Flap Barrier Gate 30p/m

  • High End 550mm Channel RFID Card Flap Barrier Gate 30p/m
  • High End 550mm Channel RFID Card Flap Barrier Gate 30p/m
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Flap Turnstile Gate Housing Material 304 Stainless Steel
Housing Size 1200 X 330 X 990 Mm Transit Speed 30 Persons/min
Motor Type DC Brushless Motor Channel Width 550mm
High Light

550mm Channel Flap Barrier Gate

,

RFID Card Flap Barrier Gate

,

30p/m High End Turnstiles
Leave a Message
Product Description

High-End Fashion Flap Barrier Gate With RFID Card Reader Turnstile Access Control System



Product overview

  • Heavy duty stainless steel Flap Barrier
  • LED Direction indicators at each side
  • Selectable operating modes- single direction, bi-direction, always free or alwase locked
  • IP55 Weatherproof Protection rating
  • Automatic reset of barrier gate after each passage
  • Adjustable time out delay.
  • Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
  • Integration support with any RFID/Biometric Reader through NO input
  • Anti-climbing
  • Anti-step cross
  • High protection level

PRODUCT PARAMETER



product size 1200(Length)*330(width)*980(height)mm
Passage width ≤550mm
material AISI 304 stainless steel
swing material  Clear acrylic (10mm)
MCBF over 5,000,000
Power Supply AC 220V/ 110V
power consumption static state <50W,dynamic state <150W
Frequency 50~60Hz
Unlock time 0.2s
Throughput rate 30p/m
Drive mode DC motor
Infrared detection included
weight 75kg
Communication TCP/IP, RS485(option)
working temperature -30℃—65℃
working humidity <95%

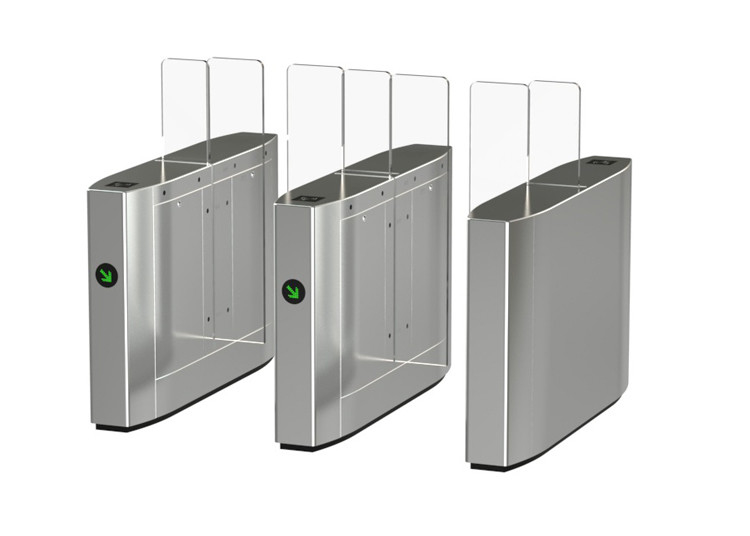

PRODUCT PHOTO

High End 550mm Channel RFID Card Flap Barrier Gate 30p/m 0



PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.



2. Control board is with standard electrical interface for the integration of various access control terminal.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.



10. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
