Face Recognition Fingerprint Turnstile Barrier Gate For Gyms

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Manufacturer SINOMATIC Flap Height Half Height/body Height
Flap Material Clear Acrylic Flap Function Support LED Light
Motor Type DC Brushless Motor Warranty 12 Months
High Light

Fingerprint Turnstile Barrier Gate

,

3W Turnstile Barrier Gate

,

Face Recognition Gyms Pedestrian Turnstiles

Leave a Message
Product Description

High security fingerprint pedestrian face recognition access control turnstile barrier gate system for gyms



About our company



SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED is a high-tech enterprise, which specializes in turnstile gates, barrier gate, road bollards



and etc. since 2002. It is one of the top manufacturer of automatic barrier turnstile gates in China.


We have our own factory 4700 square meters in Shenzhen city, We have more than 150 employees, including 10+ personnels in R & D



department. There are more 50+ patents on technical & design. It ensures SINOMATIC to provide high quality turnstile barrier gates and good



maintain service.



Product description



Sliding barriers offer a reliable and efficient method to ensure only authorized users are allowed access to each area of a building. It's is an



attractive speed gate turnstile that is easily capable of handling high volume and abusive conditions. The compact unit makes it simple to

construct a multiple lane set-up while the variety in colors allows you to match this turnstile perfectly to your lobby or branding.



PRODUCT PARAMETER



Model No.
SN-SLB01
Cabinet Material
304 Stainless Steel
Dimensions
Cabinet:1200*330*1000mm
Motor Type
DC brushless
Weight
70KG
Arm Length
250-300mm
Passage Width
550-600mm
Dry Contact
12V
Material Thickness
1.5mm
Card-reading Window
Included
Direction
Bi-directional
Service Life
5 million times
Operating Temperature
-25℃ ~ +60℃
Related Humidity
≥90%RH
Power Supply
AC220V/110V ±10% 50/60MHZ (optional)
NO PASSING Speed
30-40 persons per minute
NC PASSING Speed
20-30 persons per minute



PRODUCT PHOTO

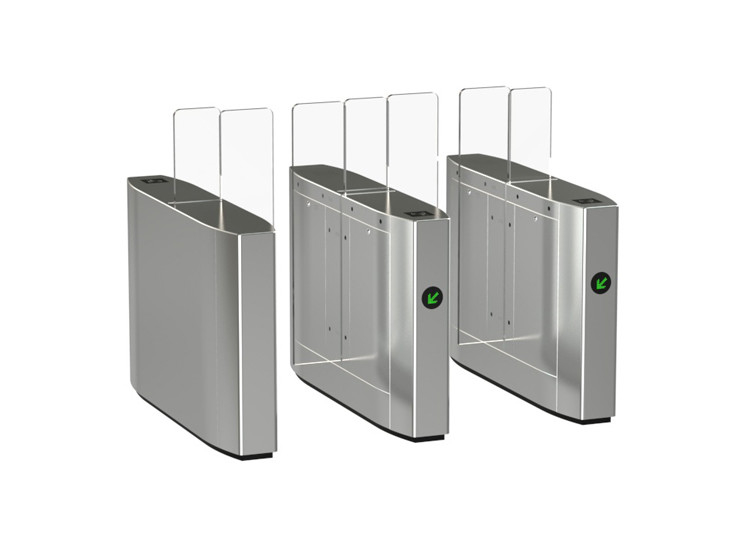

Face Recognition Fingerprint Turnstile Barrier Gate For Gyms 0



PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.



2. Control board is with standard electrical interface for the integration of various access control terminal.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.



10. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.
