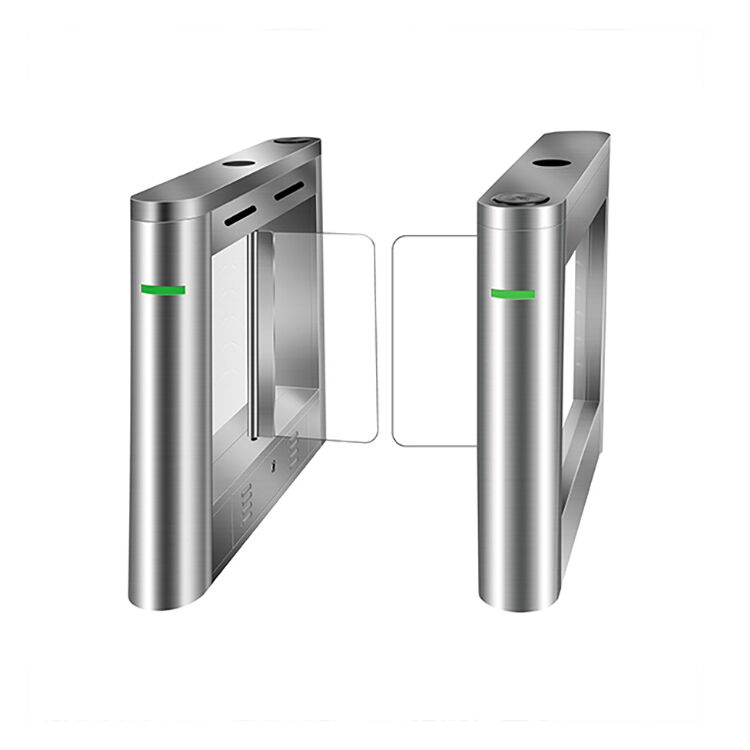

RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width
  • RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width
  • RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width
  • RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width
RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width

RS485 SUS304 Stainless Steel Swing Barrier Glass Turnstile with 350mm Width

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Opening Time:
Less Than 1s
Pass Speed:
30 Pp/minute
LED Indicator:
RGB Color
Swing Arm Drive Angle:
180 Degree
Drive Motor:
DC Brushless Motor
Glass Width:
350mm
Highlight:

SUS304 Swing Barrier Glass Gates

,

RS485 Swing Barrier Glass Gates

,

350mm Width Pedestrian Security Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
Laser Cutting RS485 SUS304 Swing Barrier Glass Gates 350mm Width
Digital Controlled Laser Cutting 304 Stainless Steel Round Corner Swing Barrier Glass Gates
Frequently Asked Questions
Do you provide OEM service?
Yes, we offer comprehensive OEM services including:
  • Custom barrier gate manufacturing according to your specifications
  • Logo printing on barrier gates and custom retail box packaging
Lead time for standard items
  • 1-50 sets: 5 working days
  • 50-100 sets: 7 working days
  • 100-500 sets: 15 working days
  • Custom packaging or logo: Additional 3-10 working days
Quality guarantee and after-sales service
We provide a 1-year warranty with comprehensive support from our trained sales team and professional engineers.
After-sales services include:
  • 24-hour response time for all inquiries
  • High-quality products at competitive prices
  • Technical guidance from experienced engineers
  • Dedicated after-sales support team
Swing Barrier Gate Overview
The Glass Gate Turnstile is an architecturally advanced swing pedestrian barrier that combines security with sophisticated detection technology to deliver silent, smooth, and highly reliable access control.
This intelligent channel management device represents years of careful development and represents a high-tech solution for personnel access management. The system integrates mechanical, digital, and microprocessor control technologies with multiple identification systems, featuring reliable safety mechanisms, alarms, direction indicators, and user-friendly LED counting displays.
With standard input and output interfaces, the Glass Gate Turnstile is the ideal choice for system integrators, easily compatible with IC card, ID card, barcode card, fingerprint, and other identification systems to ensure orderly and secure personnel access management.
Product Specifications
Parameter Specification
Product Name Swing barrier, Glass Gates
Model SN-SB05
Brand SINOMATIC
Design Size 1200*220*1000 mm
Chassis Material 304 stainless steel
Operating Temperature -20°C to 60°C
Relative Humidity 5% to 95%, non-condensing
Standard Channel Width 600mm
Travel Speed 30 persons/minute
Working Environment Indoor and outdoor
Input Interface Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
Communication Interface RS485 (distance ≤ 1200 m), TCP/IP
Lane Width ≤1200mm
Barrier Opening/Closing Time 0.1s
Automatic Reset Time 10 seconds
Swing Arm Transmission Angle 180 degrees
Material Thickness 1.5mm SS304
Driving Motor 24V DC
Power On Initialization 3 seconds
Supply Voltage AC100V to 260V
Gate Components Chassis, movement, control board and power supply
Service Life Continuous opening and closing more than 3 million times
Structure Frame structure / Stainless steel housing
Gate Direction One-way / Two-way
Drive Motor Type DC brushless Motor
