QR Code 10mA SS304 Security Swing Barrier Gate For Lobby
  • QR Code 10mA SS304 Security Swing Barrier Gate For Lobby
  • QR Code 10mA SS304 Security Swing Barrier Gate For Lobby

QR Code 10mA SS304 Security Swing Barrier Gate For Lobby

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB03
Product Details
Type:
Security Swing Barrier Gate
Tailored Service:
SIZE, Control System
Arm Material:
SS304/ Acrylic
Surface Finishing:
Wire Drawing
Material:
SS304
Motor:
DC Brushless
High Light:

SS304 Security Swing Barrier Gate

,

10mA Security Swing Barrier Gate

,

Lobby QR Code Swing Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

OEM Logo QR code Security Swing Barrier Gate For Public Lobby



PRODUCT DESCRIPTION

SINOMATIC swing barrier Series is a swing barrier with a modular design that realizes fast switching between different readers. And reader installation can be completed by merely pull-out and plug-in. After installing the corresponding readers, it can support multiple verification methods, including RFID, fingerprint, QR code, palm verification and visible light facial recognition. Especially, palm verification and visible light facial recognition can realize touchless entrance control that avoids hands exposing to bacteria and boost public hygienic security.



Function:



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, swing barrier will alarm untill passenger get back from the swing barrier and then take a valid card to be read for passing.


7. Swing barrier is with 485 interface for long-distrance control concern.


8. Anti-rush function: If there is no open single, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the swing barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force.Also it will alarm.


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.


11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).


12. Direction display to guide passenger which direction is to go.


13. Card-reading with memory or without memory function.


14. Swing barrier can control the population inside in the control of software

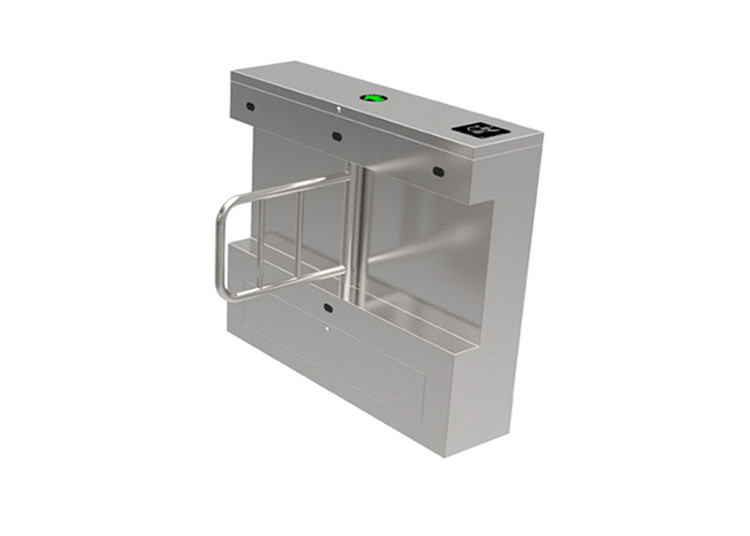

PRODUCT PHOTO

QR Code 10mA SS304 Security Swing Barrier Gate For Lobby 0



Specifications of swing arm barrier:



Description

Specification

Channel width 600mm (default)
Arm lenght 530mm (default)

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

30 person per minute

Gate swing angle

180 degree

Gate opening speed

1s

Reset time when power on

3s

Working temperature

-20°C~60°C

Package Wooden box



Application: Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



FQA

Q1. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.


Q2.Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.


Q3.What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
