QR Code 10mA SS304 Security Swing Barrier Gate For Lobby
OEM Logo QR Code Security Swing Barrier Gate
Professional access control solution for public lobbies with modular design and multiple verification options.
Product Overview
SINOMATIC swing barrier Series features a modular design that enables fast switching between different readers. Reader installation is simplified with pull-out and plug-in functionality. The system supports multiple verification methods including RFID, fingerprint, QR code, palm verification, and visible light facial recognition. The touchless verification options enhance public hygiene security by minimizing contact.
Key Features
- Built-in problem self-checking function
- Multiple operating modes: bi-directional card reading, one-direction card reading, and free passage options
- Automatic arm opening during power loss with automatic reset when power returns
- Adjustable closing delay from 1-60 seconds after valid card read
- Auto-reposition function with configurable time limits
- Anti-passback alarm system for unauthorized access attempts
- 485 interface for long-distance control integration
- Anti-rush function with secure arm locking
- Dual anti-clipping protection: photocell and mechanical safety systems
- Standard electrical interfaces for reader integration
- Optional passenger counting with LED display
- Direction display guidance for users
- Card-reading with memory function options
- Population control capability through software management

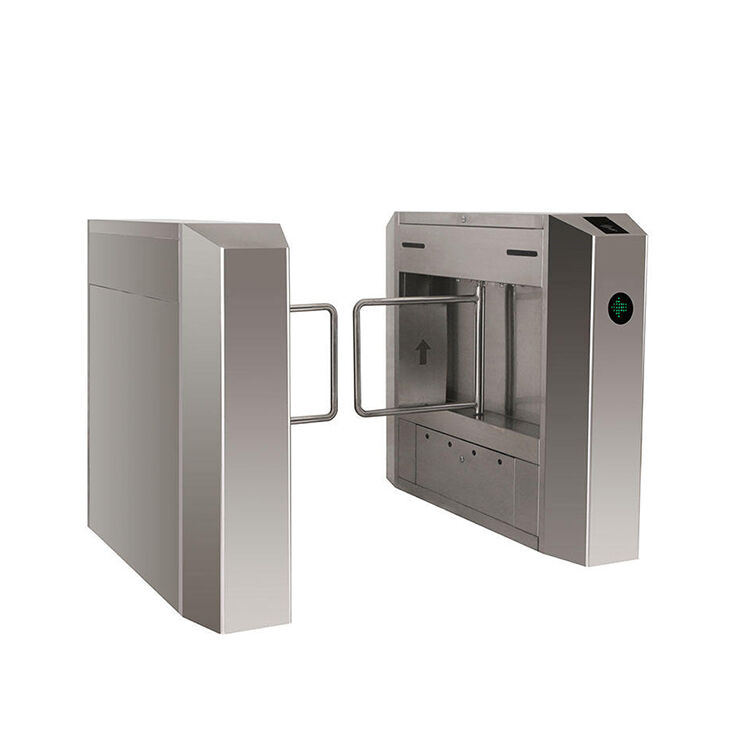

Product Image
Technical Specifications
| Description |
Specification |
| Channel width |
600mm (default) |
| Arm length |
530mm (default) |
| Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage |
DC 24V (brush motor) |
| Max flow rate |
30 persons per minute |
| Gate swing angle |
180 degrees |
| Gate opening speed |
1 second |
| Reset time when power on |
3 seconds |
| Working temperature |
-20°C to 60°C |
| Package |
Wooden box |
Applications
Intelligent Vertical Swing Turnstile compatible with IC card, ID card, barcode card, and fingerprint reading devices. Ideal for managing staff access in stations, wharves, subways, factories, office buildings, hotels, clubs, intelligent communities, and enterprises requiring sophisticated access management systems.
Frequently Asked Questions
Q1. How about some special design?
We specialize in custom gate and barrier designs tailored to your specific requirements. We can create different sizes, software configurations, and features. Video calls are available during the design process for real-time communication.
Q2. Do you have agency for after-sales service?
Our sales team is available for any delivery-related questions. For installation, we provide instructional videos. For technical support, we offer face-to-face video consultations to resolve any issues promptly.
Q3. What time do you need to delivery?
Standard orders are typically delivered within 5-7 working days after payment. Delivery times may vary based on order quantity, and we discuss specific timelines before final payment.
