550mm Width 100W 30person/Min Sliding Panel Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB03
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Housing Size 1200x330x1000mm Barrier Height Max 1600mm
Barrier Material Clear Acrylic Passage Width 550mm
Flow Rate 30 Person/per Minute Power Consumption Max 100W
High Light

30person/Min Sliding Panel Barrier Gate

,

100W Sliding Panel Barrier Gate

,

550mm Width Sliding Turnstile Gate

Leave a Message
Product Description

Infrared Sensor DC Brushless Motor Body Height Sliding Panel Barrier Security Turnstile Gate



PRODUCT DESCRIPTION



The Sliding Barrier Turnstile Speed Gate --- can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



PRODUCT FUNCTIONS & FEATURES



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading; One direction card reading and another freely. And single direction photocell controlled passing and close. Working ways can be set in the control panel.


3. When power off, barrier open automatically and power on again, barrier will close automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the Swing barrier and then take a valid card to be read for passing.


7. Swing barrier is with 485 interface for long-distrance control concern.


8. Anti-rush function: If there is no open single, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through the Swing barrier,

photocell will detect out this situation and will not close. After passenger passed, arm will close automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a while with very slight force. Also it will alarm.


10. The barrier is with standard electrical interface for the integration of various readers and writers.


11. The barrier can count how many passenger has passed and will show it in the LED display(optional)


12. Direction display to guide passenger which direction is to go.


13. Card-reading with memory or without memory function.



PRODUCT PHOTO

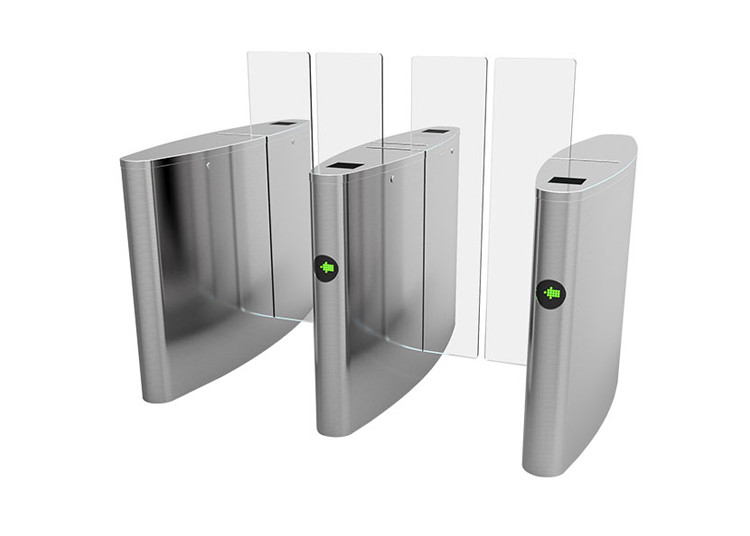

550mm Width 100W 30person/Min Sliding Panel Barrier Gate 0550mm Width 100W 30person/Min Sliding Panel Barrier Gate 1



PRODUCT PARAMETER



   ITEM   SPECS
Model
SN-SLB03
  Origin   SHENZHEN CHINA
Standard dimension
1200x330x1000mm
Framework Material
1.2mm thickness SS304
Panel material
10mm acrylic
Passage Width
550mm(default)
Passing  direction
Single directional/Bi-directional
Pass rate
30 person per minute
Operating time
0.2 seconds
Power input
AC100-240V,50/60HZ
Working voltage
24V
Working humidity
5%~95%
Working temperature
-25℃~+60℃
Working environment
Indoor/outdoor with tent
Communication interface
Dry contact
Mechanism
Brushless  motor
Infrared sensor
4 pairs(default)
MCBF
5,000,000 Cycles
Application
Airports, Hotels, Governemnt Halls, etc
