350mm Width 5 Million SS304 MCBF Glass Wing Barrier Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB05
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 1,000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Type Automatic Wing Barrier Application Indoor/outdoor
LED Indicator Supported Swing Arm Drive Angle 180 Degree
Drive Motor DC Brushless Motor Glass Width 350mm
High Light

MCBF Glass Wing Barrier Gate

,

SS304 Glass Wing Barrier Gate

,

350mm Width Pedestrian Security Gate

Leave a Message
Product Description

Revolving Hotel Fingerprint Scanner DC Motor 5 million MCBF Slim Design glass wing barrier gate



ABOUT THE SWING BARRIER



Glass Turnstiles Torniquete is a part of the access control system and is a crucial a part of trendy entrance control. The door wing is pushed by the control system and robotically opens and closes. The working mode can be chosen by programming: The door wing is robotically opened as long as the verification entrant is permitted. Closed after delay, the delay time is adjustable.



Glass Turnstile Baffle is an intelligent channel administration device that has been carefully developed, developed and produced over the years. It is a high-tech product primarily for intelligent administration of personnel channels. The gadget combines mechanical, digital, microprocessor control and numerous identification applied sciences, and is equipped with quite a lot of identification system devices and reliable efficiency safety units, alarms, direction indicators, and extended friendliness. The LED counting display interface coordinates the clever control and management of the channel.



Glass Gate Turnstile has standard enter and output interfaces, and is the best choice for system integrators. It may be simply compatible with IC card, ID card, barcode card, fingerprint and other card reader identification units, offering civilized and orderly access for entry and exit personnel. Methods to successfully handle personnel out and in.


Glass Gate Turnstiles is an architecturally brilliant swing pedestrian barrier unites security and clever detection expertise to provide silent, smooth and highly dependable passage entry.

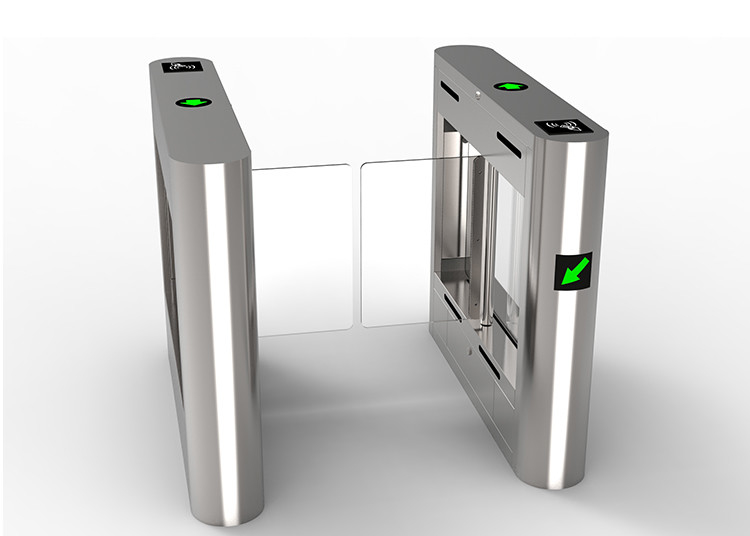

PRODUCT PHOTO



350mm Width 5 Million SS304 MCBF Glass Wing Barrier Gate 0





PRODUCT SPECS



Tech Parameters
Product Name Slim Turnstile,Slim Barriers,Glass Gates
Model SN-SB05
Brand SINOMATIC
Design Size 1200*220*1000 mm
Chassis Material 304 # stainless steel
Relative humidity -10 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation
Maximum channel width <900mm
Temperature -20ºC-60ºC
Travel speed 30 persons/min
Working environment indoor and outdoor
Input interface Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA
Communication Interface RS485 (distance ≤ 1200 m), TCP / IP
Lane width ≤1200mm
Flap Opening/Closing Time 0.1s
Automatic reset time after failure 10 seconds
Swing arm transmission angle 180 degrees
Thickness 1.5mm SS304
Driving Motor 24V
The time required to enter the common state after power on 3 seconds
Supplu Voltage AC100V to 260V
Gate components chassis, movement, control board and power supply
Service life continuous opening and closing more than 3 million times
Structure Frame structure / Stainless steel housing
Working environment Indoor and outdoor (shed)
Turning of the gate one-way / two-way
Drive Motor DC brushless Motor
