350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier
  • 350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier
  • 350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier
350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier

350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW05
Product Details
Product Type:
Automatic Wing Barrier
Application:
Indoor/outdoor
LED Indicator:
Supported
Swing Arm Drive Angle:
180 Degree
Drive Motor:
DC Brushless Motor
Glass Width:
350mm
Highlight:

MCBF Glass Wing Barrier Gate

,

SS304 Glass Wing Barrier Gate

,

350mm Width Pedestrian Security Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1,000 pcs per month
Product Description
350mm Width 5 Million SS304 MCBF Glass Wing Barrier Gate
Product Overview
This revolving hotel fingerprint scanner DC motor glass wing barrier gate features a slim design with 5 million MCBF (Mean Cycles Between Failure) rating. As part of modern access control systems, this glass turnstile provides intelligent channel management with reliable performance and advanced security features.
Key Features
  • Advanced access control integration with multiple identification technologies
  • Slim, modern design with glass wings for architectural appeal
  • DC brushless motor for smooth, silent operation
  • High durability with 5 million MCBF rating
  • Flexible programming options for various operational modes
  • Compatible with IC card, ID card, barcode card, and fingerprint readers
  • Suitable for both indoor and outdoor installations
Product Image

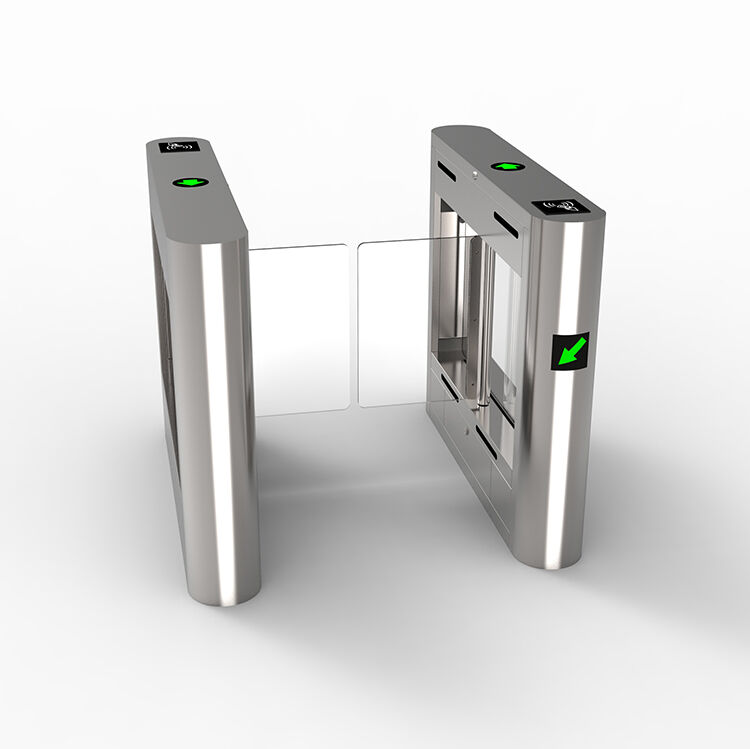

350mm Width 5 Million MCBF SS304 Glass Wing Barrier Gate Automatic Swing Barrier 0
Technical Specifications
Product Name Slim Turnstile, Slim Barriers, Glass Gates
Model SN-SB05
Brand SINOMATIC
Design Size 1200*220*1000 mm
Chassis Material 304 stainless steel
Material Thickness 1.5mm SS304
Maximum Channel Width <900mm
Lane Width ≤1200mm
Operating Temperature -20ºC to 60ºC
Relative Humidity 5% to 95% (non-condensing)
Travel Speed 30 persons/min
Flap Opening/Closing Time 0.1s
Swing Arm Transmission Angle 180 degrees
Drive Motor 24V DC brushless motor
Supply Voltage AC100V to 260V
Input Interface Relay switch signal or 12V level signal
Communication Interface RS485 (distance ≤ 1200 m), TCP/IP
Automatic Reset Time 10 seconds
Power On Initialization 3 seconds
Service Life Continuous opening and closing more than 3 million times
Working Environment Indoor and outdoor (with shelter)
Turning Direction One-way / Two-way
Gate Components Chassis, movement, control board and power supply
