Face Recognition SS304 Access Control Turnstiles Retractable Anti Crawling
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-SLB02 |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-10 working days after payment received |
Payment Terms | T/T or western Union |
Supply Ability | 1,000 pcs per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xPanel Height | 1.6m | Housing Lenght | 1200mm |
---|---|---|---|
Housing Width | 330mm | Housing Height | 1000mm |
Max Flow Rate | 25 To 30 Person Per Minute | IR Sensor | Yes |
Passage Width | 550mm | Framework | SS304 |
Weight | 90KG | Working Voltage | AC220V/110V |
High Light | SS304 Access Control Turnstiles,AC220V Retractable Access Control Turnstiles,Anti Crawling Access Control Pedestrian Turnstile |
Face recognition system retractable fast transit speed full height sliding type turnstile gate
GENERAL DESCRIPTION
This equipment is subtly integrated with machine, electronics, mic-processor control and ID identification, provides convenience for the use of card reader identification equipments.
Working well with IC card, ID card, bar code, fingerprint and so on, those card -reading identification equipments, it provides civilized and sequential passage way to people, helps companies manage their employee effectively as well.
It is widely applied to bus stations, ports, neighborhoods, hotels, clubs and companies who want to carry out intelligent management on passage.
Classified into two kinds :single core and double cores
Single core :mainly applied to single passage and multiple passages .
Double core:mainly applied to multiple passages.

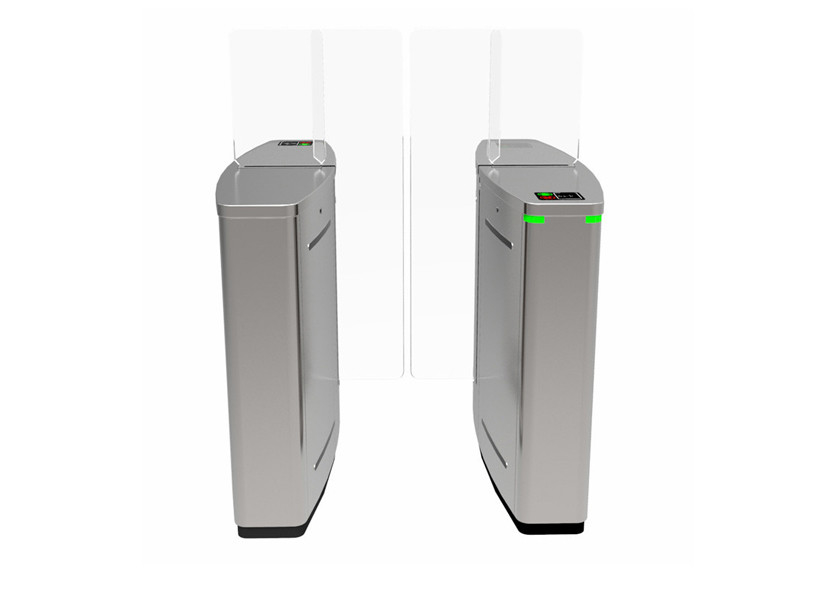

PRODUCT PHOTO
FUNCTIONS & FEATURES
1.Functions of breakdown self -checking and alarm warning ,very convenient for customer's maintenance and use.
2.Program operation mode of equipments through the little button inside the main board.
3.Adjust it to normal open or normal close to meet the different requirements of different fields.
4.Can be linked to many kinds of card -reading equipments and work when it has received the signal of electricity relay switch.
5.One-way and two-way in and out control of passer .
6.Carry out distant control and management by directly operating computer.
7.Sound and lights alarming :including break -in and opposite direction intrusion ,and so on .
8.Counting function (optional).
9.Anti-Pinch function (four pairs of infrared)
10.Accurate logical judgment ,IRDA returning function (four or six pairs).
11.Speech output,human voice warning the right passing (optional).
TECHNICIAL SPECIFICATIONS
framework |
304 grade stainless steel thickness |
||
size |
1200*330*990mm |
||
weight |
90kg |
||
arms length |
285mm |
||
working voltage |
AC220V±10%,50HZ±10% |
||
logic voltage |
24V |
||
pass width |
≤ 600mm |
||
transit speed |
20-30 persons per minute |
||
working environment |
indoor /outdoor |
||
working temperature |
-40°c ~ 60°c |
||
readable cards |
IC/ID card |
||
protection grade |
IP54 |
||
opening gate time |
1S |
||
relative humidity |
≤90%,no -condensation |
