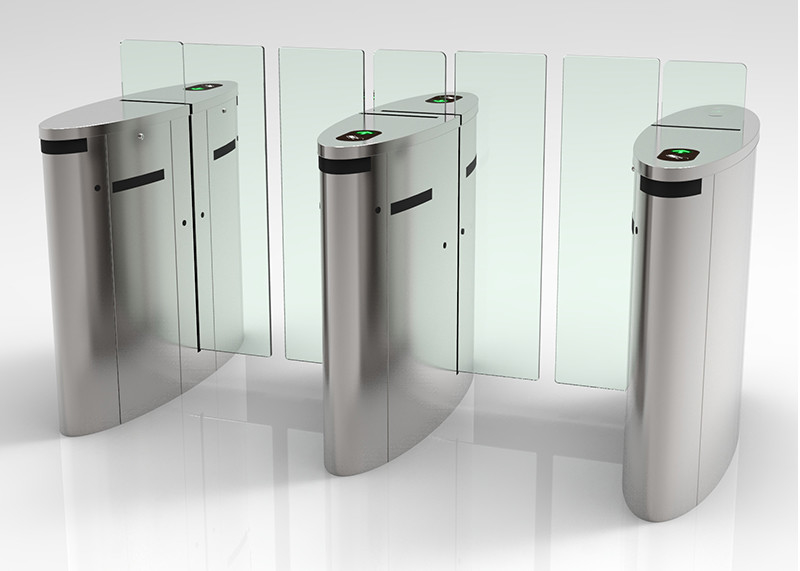

Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt
  • Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt
  • Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt
  • Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt
  • Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt
  • Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt

Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB03
Product Details
Wing Panel:
10mm Thickness Acrylic
Operating Voltage:
DC 24V
Power Supply Input:
220V/110V ± 10% AC, 50 / 60Hz
Power Consumption:
30 Watt
Max Flow Rate:
25 To 30 Person Per Minute
IR Sensor:
Yes
Wing Height:
1.5m From Ground(standard)
Wing Width:
270mm
Highlight:

Optical Passage Access Control Turnstile Gate

,

Arylic Wing Access Control Turnstile Gate

,

30 Watt Sliding Lane Barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description

Optical Passage High Level Security Application Body Height Acrylic Wing 5 Million Service Life Sliding Lane Barrier



General introduction





Intelligent sliding barrier is mainly used to prevent pedestrians illegally drilled or climbing places to implement the entrance and exit control management of high-tech products, its shape with international stainless steel profiles, fine craft, full-featured, nice, rust, durable, can resist external damage.The equipment integration mechanical, electronic, microprocessor control of electronic ticket system, access control attendance system, parking system, face recognition system, anti-static, fingerprint, palm, iris and other biometric identification system integration and use.



Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 0

Description Parameters
Lane Width 550-570mm
IP IP54
Pass Speed 30 persons/min
Power supply AC220V/110V,50/60Hz
Drive Mode Motor drive
Max Power Consumption 200W
Opening time 0.3S
Humidity ≤90% coagulation free
Noise ≤50dB
Service Life 5,000,000 cycles
Working Environment -20°C~+60°C
Gross Weight 100KGS



Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 1

PRODUCT DIMENSION

Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 2

PRODUCT ADVANTAGES

  • The whole system runs smoothly, long-life performance, high operation dependability and fast response.
  • Alarm function, in case of illegal intrusion and reverse intrusion.
  • Infrared sensor to prevent pinch pedestrians.
  • Anti-breakthrough function. The gate is locked automatically until opening signal received.
  • Anti-trailing function, the turnstile will lock if someone wants to burst in without swiping the RFID card.
  • LED indicator.
  • Automatic reset function. If the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
  • When power off, optical turnstile will open automatically, which is complying with fire safety requirements.

Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 3



MAIN FUNCTIONS & FEATURES



1. Provide normally open / normally close to satisfy management request.
2. Compatible with RF card readers, bar code readers, biometric readers, push button...
3. Equipped with infrared photocell, alarm while unauthorized entry or tailgating attempts, together with anti-strike function to protect pedestrian.
4. Expanded to automatic identification system, access control system, Traffic control, attendance check and fare collection system etc.
5. Automatically reset : lock automatically while the pedestrian not pass the lane in the pre-set time after the flap opened. The passing time is adjustable.
6. Equipped with international interface, can be easily integrated with other R/W device and managed through remote supervision computer
7. Support gate open while power failure and recover N/C mode after power on.
8. (Optional) Memory function. Can pass N pedestrians continuously by swiping card N times correspondingly (N<=16)
9. (Optional) Reversed passing alarm function, barrier will alarm if pedestrian pass from opposite direction after reading the card.
10. One direction or bi-direction is optional.

12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Flap barrier can control the population inside in the control of software.
15. Stable running with little noise.



CASE REFERENCE



Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 4

Optical Passage Access Control Turnstile Gate Arylic Wing Sliding Lane Barrier 30 Watt 5
