Multi - Channel Waist Height Turnstiles Stainless Steel Turnstile For Access Control System

Place of Origin SHENZHEN, CHINA
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB02
Minimum Order Quantity 1
Price negotiable
Packaging Details CARTON/WOODEN
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union, D/P, D/A, L/C, MoneyGram
Supply Ability 1,000pcs per month
Product Details
Reset Time When Power On 3S Flap Material Crystal Acrylic
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz Product Type Full Height Sliding Gate
Flap Opening / Closing Time 1S Application Indoor/ Outdoor With Tent
Battery Yes Photocell Yes
High Light

electronic turnstiles

,

retractable barrier gate

Leave a Message
Product Description

Multi-channel stainless steel pedetrian waist height sliding turnstile for access control system



Introduction of waist height sliding turnstiles:



1. Anti-Pinch function

2. Automatic returning/resetting function

3. Anti-rushing function





Applications of waist height sliding turnstiles:



Sinomatic waist height sliding turnstile is suitable for indoor or outdoor with shed. They are widely used in subway station, metro station, bus station, stadium, supermarket, check point, book stores, sports center, factory, colleges, commercial building, library, stadium, hotel, bank and etc.



Features of waist height sliding turnstiles:



1. Fault detection and alarm functions, easy to use and maintenance.

2. The running status can be programmed and controlled with the built-in keyboard on the main board.

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset).

4. Anti-breakthrough function. The gate is locked automatically until opening signal received.

5. Synchronization functions (for dual gate equipment).

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

7. Gate can be set as normally open or normally closed.

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).

9. Direction can be set as single-direction or bi-direction.

10. LED direction indicator.

11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

13. Counter function (optional).

14. Support infrared photocell for anti-pinch and reset function.



Specifications of half height sliding gate:



Item

Specification

Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

25 to 30 person per minute

Flap opening / closing time

1s

Reset time when power on

3s

Working temperature

-20°C~60°C

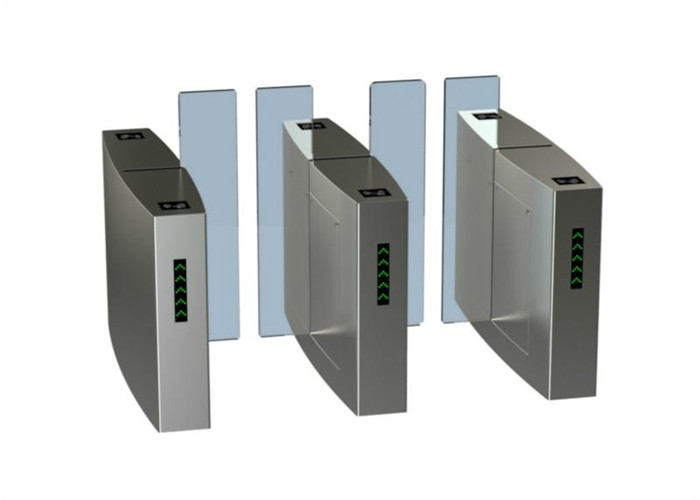

More photo of waist height sliding turnstiles:



Multi - Channel Waist Height Turnstiles Stainless Steel Turnstile For Access Control System 0
