Anti Pinch 35W Swing Arm Barrier Electronic 24VDC For Security Check
  • Anti Pinch 35W Swing Arm Barrier Electronic 24VDC For Security Check
  • Anti Pinch 35W Swing Arm Barrier Electronic 24VDC For Security Check

Anti Pinch 35W Swing Arm Barrier Electronic 24VDC For Security Check

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB04
Product Details
Case Material:
304 Stainless Steel
Arm Material:
Color Or Clear Acrylic
Product Life:
4 Million Times
Single Or Bi-direction
LED Indicator:
High Light:

Anti Pinch Swing Arm Barrier


35W Swing Arm Barrier


24VDC Access Control Turnstiles

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

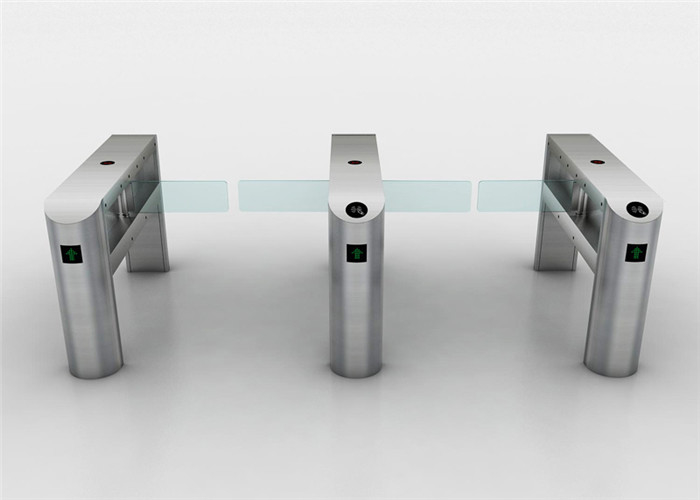

110V electronic 2 channel swing arm barrier , controlled access turnstiles for security check


Introduction of swing arm barrier:


  • Swing turnstiles are compact and cost-effective entrance solutions.
  • The body is made of brushed stainless steel which is robust, rigid, anti-rust and durable.
  • Swing turnstile is ideal for both indoor and outdoor(with tent)
  • It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).

Features of swing arm barrier:


1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7. Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells.
9. Anti-pinch function by photocells.
10. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator


Specifications of swing arm barrier:


Framework Material 304 Stainless Steel
Dimension 1200 * 280 * 980mm
Net Weight 80kg
Passage Width 960mm (One passage)
Passing Direction Single directional / Bi-directional
Power Supply 100V~240V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 35W
Operation Temperature -20 °C ~+60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30-35 people per minute
LED Indicator Yes
Infrared Sensor Yes
Emergency Automatic arm open when power off


Production line:

Anti Pinch 35W Swing Arm Barrier Electronic 24VDC For Security Check 0


Our advantages
1.Professional solutions.
2.Competitive and reasonable price
3.Advanced technology
4.High quality
5.Fast delivery
6.Best service
7.High reputation of this industry
8.Wonderful team
9.The product have a wide range application
