High Security 304 Stainless Steel Pedestrian Swing Gate with 90cm Arm Length and DC Motor
  • High Security 304 Stainless Steel Pedestrian Swing Gate with 90cm Arm Length and DC Motor
  • High Security 304 Stainless Steel Pedestrian Swing Gate with 90cm Arm Length and DC Motor
High Security 304 Stainless Steel Pedestrian Swing Gate with 90cm Arm Length and DC Motor

High Security 304 Stainless Steel Pedestrian Swing Gate with 90cm Arm Length and DC Motor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-TB104
Product Details
Arm Length:
Max. 90cm
Housing Material:
304 Stainless Steel
Case Thickness:
1.2mm
Application:
Indoor/outdoor With Tent
Control Input:
Dry Contact
Warranty:
1 Year
Highlight:

security swing gate

,

swing gate turnstile

,

anti reversing passing swing barrier

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
3-7 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
1000 pcs per month
Product Description

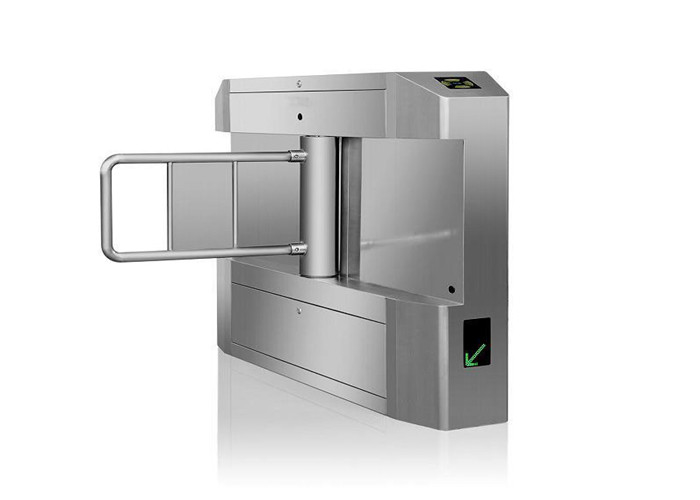

High Security Heavy Duty Pedestrian Swing Gate Wide Channel With DC Motor
Sinomatic Intelligent Swing Barrier represents our company's latest innovation in pedestrian access control. Engineered with precision craftsmanship, comprehensive functionality, and exceptional reliability, this system is ideal for high-class communities, intelligent buildings, hotels, subway stations, gyms, and other premium venues.
Key Advantages
Our pedestrian swing gate offers superior security and operational efficiency through advanced electro-mechanical design and intelligent control systems.
Features & Functions
  • Compact electro-mechanical design with unique drive and self-lock mechanism
  • Automatic malfunction detection system
  • Input interface for dry contact and switch signal connection
  • Adjustable auto-delay closing functionality
  • Infrared photocells for enhanced safety access
  • Alarm system for unauthorized access and reverse flow detection
  • Anti-reversing passing protection
  • Automatic closing when power is activated
  • Automatic opening and free access during power outages
  • Adjustable access directions for flexible installation
  • Emergency interface for critical situations
  • Traffic light indicators for clear passenger guidance
Technical Specifications
Housing Dimension 1320 * 280 * 1000 mm
Arm Length Maximum 90 cm
Motor Material Steel and Aluminum Alloy
Voltage 220V ±15% or 110V ±15%
Motor Type Brush 24V DC Motor
Input Interface Dry Contact
Opening Time 1 Second
Protection Grade IP 32
Working Temperature -25°C to +50°C
