DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control
  • DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control
  • DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control
  • DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control
DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control

DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Motor Voltage:
DC 24V (brush Motor)
Arm Length:
500 To 800mm
Arm Material:
Stainless Steel Or Acrylic
Battery:
Yes
Surface Finishing:
Wire Drawing
Warranty:
1 Year
Highlight:

swing gate turnstile

,

swing barrier gate

,

180 degree swing barrier turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
3,000pcs per month
Product Description

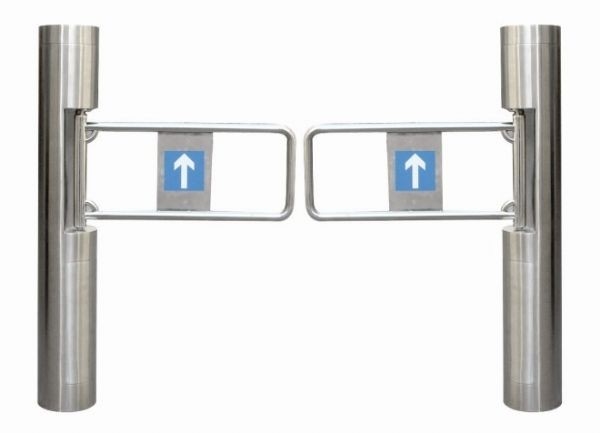

Metro Station Entrance / Exit Control Pedestrian Swing Barrier With Control Board
Sinomatic pedestrian swing gate is engineered for secure access control in high-traffic environments. Constructed with durable stainless steel housing and integrated control systems, this barrier solution is ideal for metro stations, factories, museums, apartments, and transportation terminals.
Key Features
  • Bi-directional opening capability for flexible traffic flow management
  • Seamless integration with existing access control systems
  • Programmable automatic closing with adjustable timer settings
  • Dual dry contact control (NC/NO) for precise opening and closing operations
  • Automatic fail-safe opening during power outages with auto-resume security
  • Built-in safety clutch disengages motor drive during obstructions
  • Optional safety IR beam for obstacle detection and automatic reversal
  • Customizable gate length to accommodate specific site requirements
  • Synchronized operation for dual-gate passage configurations
  • Self-locking motor mechanism at open and close positions
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or >100ms 12V impulse signal, driving current >10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 20 to 25 persons per minute
Gate Swing Angle 180 degrees
Gate Opening Speed 1.5 seconds
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Application Example
DC 24V Motor Stainless Steel Arm Bi-directional Opening Pedestrian Swing Barrier Gate for Metro Station Access Control 0
Why Choose Our Pedestrian Swing Barrier
  • years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory availability
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders accepted for testing and evaluation
  • Comprehensive online technical support
  • Multiple transportation options: sea, air, or express shipping
  • Factory visits welcome during working days
