High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow
  • High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow
  • High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow
High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow

High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB03
Product Details
Motor Voltage:
DC 24V (brush Motor)
Access Device Input Voltage:
Dry Contact Or 12V Electrical Level Signal
Max Flow Rate:
20 To 25 Person Per Minute
Gate Opening Speed:
1.5s
Working Temperature:
-20°C~60°C
Card Reader Window:
2
Highlight:

swing gate turnstile

,

swing barrier gate

,

Double Direction Airport Half Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, , L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

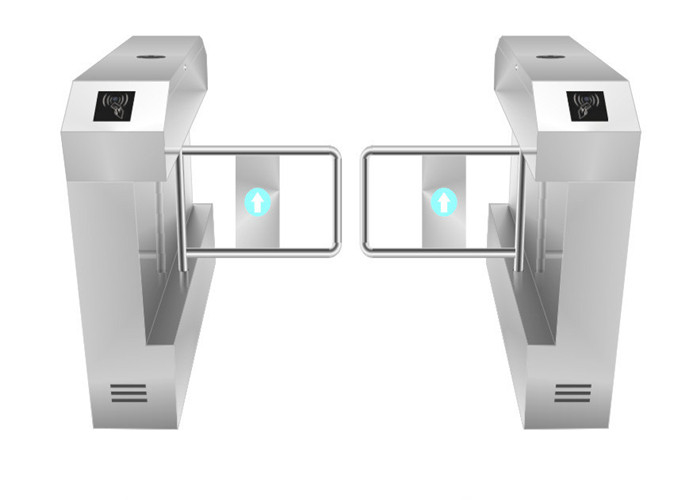

High Speed Pedestrian Swing Gate - Double Direction Airport Half Height Turnstile
Double Direction Airport Half Height Security Control High Speed Swing Barrier for Handicap Access
The swing barrier provides effective access control with smooth operation while preventing unauthorized entry and exit. These gates feature custom design, rustproof construction, durability, and resistance to external damage.
Key Features
  • Bi-directional opening capability
  • Seamless integration with access control systems
  • Dry contact trigger operation with programmable timer for automatic closing
  • Dual dry contact control (NC for open, NO for close) for precise access timing
  • Automatic gate opening during power failure with auto-close upon power restoration
  • Built-in clutch system disengages motor drive when obstructed, minimizing impact force
  • Optional safety IR beam for obstacle detection and automatic gate reversal
  • Customizable gate length to fit specific site requirements
  • Synchronized opening when multiple gates are installed in the same passage
  • Self-locking motor mechanism at open and close positions
Technical Specifications
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 20 to 25 persons per minute
Gate Swing Angle 180 degrees
Gate Opening Speed 1.5 seconds
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Product Application
High Speed DC 24V Motor Pedestrian Swing Gate with Bi-directional Opening for 20 to 25 Person per Minute Flow 0
Why Choose Our Products
  • 13 years of OEM/ODM experience in access control turnstiles and barriers
  • Prompt delivery with standard model inventory
  • Custom OEM/ODM orders to meet specific client requirements
  • Sample orders available for testing before bulk purchases
  • Comprehensive online technical support
  • Multiple transportation options: sea shipment, air cargo, or express delivery
  • Factory visits welcome during working days
