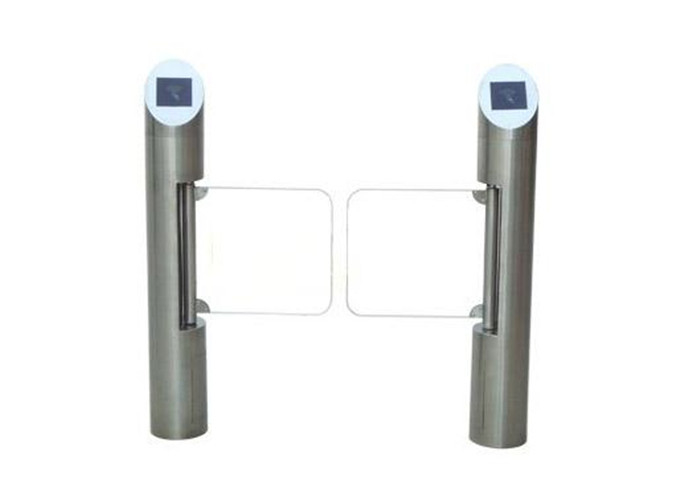

Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval
  • Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval
  • Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval
Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval

Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Max Flow Rate:
20 To 25 Person Per Minute
Arm Material:
Clear Acrylic Plate
Arm Length:
50cm To 80cm
Body Finishing:
Wire Drawing
Direction:
Can Be Set As Single Or Double
Gate Opening Speed:
1.5s
Standard:
CE Approved
Highlight:

security swing gate

,

swing gate turnstile

,

transparent acrylic swing turnstile gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
3,000pcs per month
Product Description
Electric Remote Control Swing Barrier Gate Turnstile
Electric automatic remote control pedestrian swing gate with clear transparent acrylic panels and dry contact input capability.
Pedestrian Swing Gate Overview
  • Stainless steel housing construction
  • Bi-directional passage capability
  • Automatic arm drop during power failure
  • Automatic arm rise when power resumes with obstacle detection
  • Integrated traffic light indicators
Advanced Features
  • Bi-directional opening functionality
  • Seamless integration with access control systems
  • Dry contact trigger operation with programmable timer
  • Dual contact control (NC/NO) for precise opening/closing timing
  • Automatic free access during power failure with security resume
  • Built-in safety clutch protects motor and reduces impact force
  • Optional IR beam for obstacle detection and auto-reverse
  • Customizable gate length to fit site requirements
  • Synchronized operation for dual gate installations
  • Self-locking motor mechanism at open/close positions
Technical Specifications
Description Specification
Power Supply AC220±10%V 50Hz/AC110±10% 60Hz
Access Device Input Voltage Dry contact or 12V electrical level signal or >100ms 12V impulse signal, driving current >10mA
Motor Voltage DC 24V (brush motor)
Maximum Flow Rate 20 to 25 persons per minute
Gate Swing Angle 180 degrees
Gate Opening Speed 1.5 seconds
Reset Time When Power On 3 seconds
Working Temperature -20°C to 60°C
Application Example
Electric Remote Control Swing Barrier Gate with Clear Acrylic Plate for 20-25 Person Flow and CE Approval 0
Why Choose Our Products
years of OEM/ODM experience in access control turnstiles and barriers
Prompt delivery with standard model inventory
Custom OEM/ODM orders accepted
Trial orders available for testing before bulk purchase
Comprehensive online technical support
Multiple transportation options (sea, air, express)
Factory visits welcome on working days
