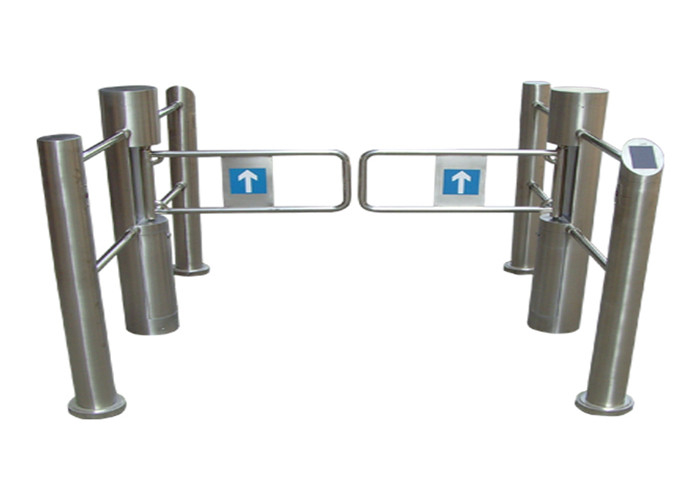

Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm
  • Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm
  • Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm
Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm

Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SW01
Product Details
Product Life:
5 Million Times
Card Reader Window:
Yes
Arm Material:
Stainless Steel Or Acrylic
Application:
Indoor/ Outdoor With Tent
Surface Finishing:
Wire Drawing
Direction:
Can Be Set As Single Or Double
Gate Opening Speed:
1.5s
Highlight:

security swing gate

,

swing barrier gate

,

Programmable Card Reader Pedestrian Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T,Western Union,,L/C,D/A,D/P
Supply Ability
3,000pcs per month
Product Description
Programmable Card Reader / Writer Pedestrian Swing Gate With 180 Degree Angle
Safety crowd control time attendance 180 degree swing angle cylinder pedestrian swing gate with railings
Product Introduction

Together with smart card reader/writer and management software, our pedestrian swing gate acts as an intelligent access control turnstile management system, fulfilling functions including access control, time attendance, pedestrian volume control, and tolling.

Key Features
  • Support bi-directional opening
  • Can integrate with access control systems
  • Trigger to open by dry contact with automatic close back after timer elapsed
  • Programmable delay time on swing barrier control panel
  • Automatic opening during power failure with automatic closure when power resumes
  • Built-in clutch automatically disengages motor drive when gate is obstructed
  • Optional safety IR beam for auto-reverse function upon detecting obstacles
  • Customizable gate length to fit site requirements
  • Auto synchronized opening when two swing barriers are installed
  • Gate motor mechanism self-locks at open and close positions
Technical Specifications
Description Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Max flow rate 20 to 25 persons per minute
Gate swing angle 180 degree
Gate opening speed 1.5s
Reset time when power on 3s
Working temperature -20°C~60°C
Product Case
Programmable Card Reader Pedestrian Swing Gate with 180 Degree Swing Angle and Stainless Steel Arm 0










Why Choose Our Pedestrian Swing Gate
  1. More than 20 years of OEM/ODM experience in access control turnstiles and barriers
  2. Prompt delivery with standard model stock availability
  3. Accept OEM/ODM orders to meet client requirements
  4. Trial orders accepted for testing before bulk orders
  5. Online technical support for business partners
  6. Multiple transportation options: sea shipment, air cargo, or express
  7. Factory visits welcome on working days
