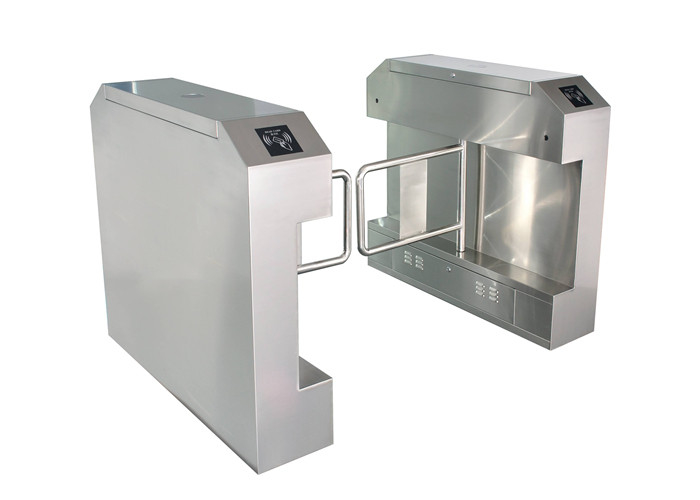

Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel
  • Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel
  • Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel

Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Product Details
Product Type:
Swing Gate
Thickness Of Housing:
1.2mm Or 1.5mm
Indoor/outdoor With Tent
Arm Length:
500mm To 800mm
1 Year
Aterial Of Housing:
304 Or 316 Stainless Steel
Single Or Bi-direction
Max Flow Rate:
20 To 25 Person Per Minute
High Light:

security swing gate


swing gate turnstile


Crowd Control Pedestrian Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Crowd Control Automatic Pedestrian Swing Gate For Access Control System


Introduction of Pedestrian Swing Gate:


Sinomatic swing gates are ideal for indoor applications requiring access in one direction and ban on passage in the opposite. Their elegant and versatile design presents a secure and stylish solution that can blend into numerous locations. After each passage the gate swing panel is smoothly reset to home position.


Applications of Pedestrian Swing Gate:


Pedestrian swing gate SN-SB03 is suitable for indoor or outdoor with tent. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, hotel, bank and etc.


Features of Pedestrian Swing Gate:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.


Specifications of Pedestrian Swing Gate:




Power supply

AC220±10%V 50Hz/AC110±10% 60Hz

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

20 to 25 person per minute

Gate swing angle

180 degree

Gate opening speed


Reset time when power on


Working temperature



Case of Pedestrian Swing Gate:


Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel 0Crowd Control Pedestrian Swing Gate Speedgate Turnstile For Stadium / Hotel 1


Why choose us:


1. Our Factory has 13 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
