Swing Gate Operator
>
|
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SW400DC |

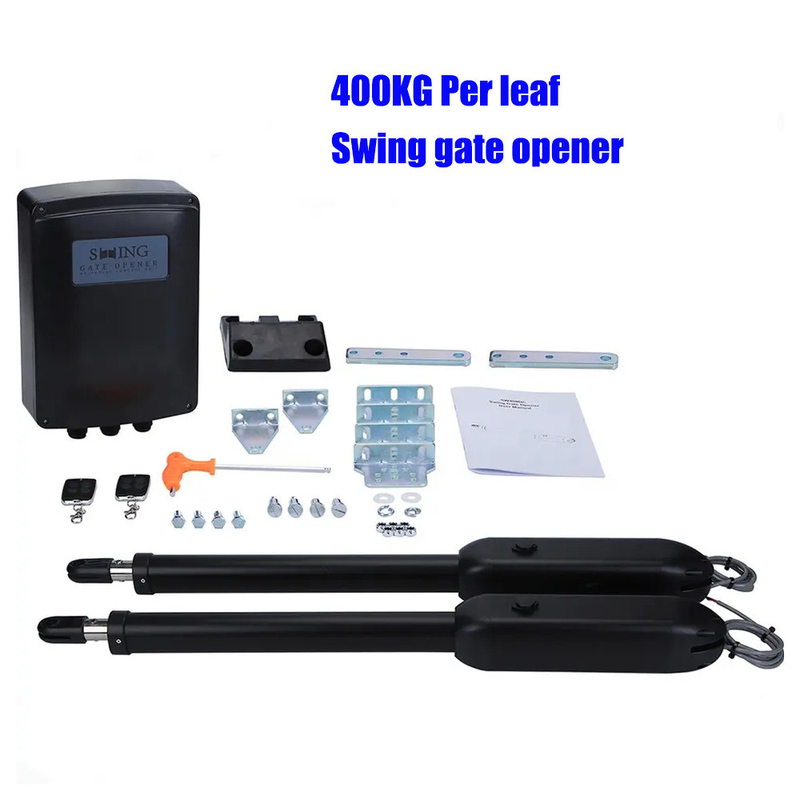

Electronic Door Opener 400kg 880lbs Power 62 W Residential Swing Gate Operator Kit
General Product description
The SW400DC gate opener designed for residential courtyard swing gate use, gate leaf weight up to 400 Kg and width up to 3.0 m, DC motor, compact structure, smooth operation and low noise.
DETAILED PRODUCT DESCRIPTION
DC motor, compact structure, smooth operation and low noise.
Stroke length 45 cm.
External control box.
Keypad/single button interface.
Alarm lamp,Photo beam & safety beam interface.
User can select auto-close function.
Manual release design for emergency purposes.
Main technical parameters
| Unit Model | SW400DC |
| Power Supply | 220V,50Hz;110V,60Hz |
| Max. Gate Weight | 400KG / Leaf |
| Max. Gate Length | 3.0 m / Leaf |
| Motor Power | DC24V,60W |
| Gate Moving Speed | 20 second per 90 angle |
| Limit Switch | Magnetic |
| Recording of up Remotes | 25 |
| Decoding / Frequency | Rolling code / 433.92MHz |
| Work Duty | S2 30min |
| Noise | ≤60dB |
| Work Temperature | -20°C~70°C |
FUNCATION AND FEATURES
*DC Motor,support backup battery DC24V(4.5AH/9.0AH)
*Optional single/double gate mode
*No limit switch,stop in obstacle ,need gate block
**Automatic closing function with adjustable time(0~99S)
*Slow start and stop, smooth operation, no inertia
*Manual release design for emergency purpose
*Alarm lamp,photo beam&safety beam interface
*Support access control system to realize automatic identification and access control
Installation Steps
Preparation Before Main Engine Installation
a) Before installing the door opener, please confirm the correct installation of the door to ensure that the door can be easily manually operated, and the door safety stopper can effectively prevent the door to continue moving.
b) Install the electric lock, the distance between the door bottom and ground should be 40-50mm. If not install the electric lock, the distance between door bottom and ground should be ≥20mm;
c) The main engine recommended mounting height is about 300 ~ 800mm from the ground, and make sure there are reliable fixed points for mounting brackets.
Cable
In order to ensure the normal operation of the door opener and protect the cable from damage, please use PVC pipe laying motor, power cable, and control cables, and separate two PVC pipes to lay (motor and power cable) and (control cable), respectively.
Mounting brackets
In order to install the main motors firmly, recommend to use the expansion screws to fix the mounting brackets.
