Roller Wheel DC Electromechanical WIFI function Optional Swing Gate Opener PK600GL

DESCRIPTION

• PK600GL Roller Wheel Swing Gate Automation Kit is suitable for powering the opening and closing motion of gates up to 600kg in weight, up to a length of 4m.
• Gate motion is achieved by the rotating gear of the gate opener.
• The opener must be fitted within private property, never externally to a property’s boundary.
• Before installing the gate opener, please ensure that the swing gate is correctly installed and smoothly moved by hand.
• If installed with electronic lock, please ensure the distance between two gates is from 15-20mm; if without electronic lock, there is no requirement about the distance between two gates.
• Ensure that the power cable is connected to a RCD protected weatherproof power outlet near the gate opener; ensure the height of the control box higher than 1.5m from the ground to keep it out of children’s reach, in order to avoid unintentional activation.
• After finished installation, please ensure again the mechanical functionality of gate opener; the smoothness from back and forth of the gate; and correct installation of infrared sensor(optional)

TECHNICAL SPECIFICATION

Main Features

• Available for installs 2 openers or 1 opener with a single control box.
• With ground wheels to stop against the ground stops.
• Travel time protection, travel time protection function to open, standard 30 seconds.
• User can select auto-close function.
• Soft start and slow stop, smooth operation and low noise.
• Automatic learning of remote control.
• Keypad / single button interface.
• Alarm lamp, photo beam & safety beam interface.
• Available with articulated arm or sliding arm.
• Manual key release design for emergency purposes.

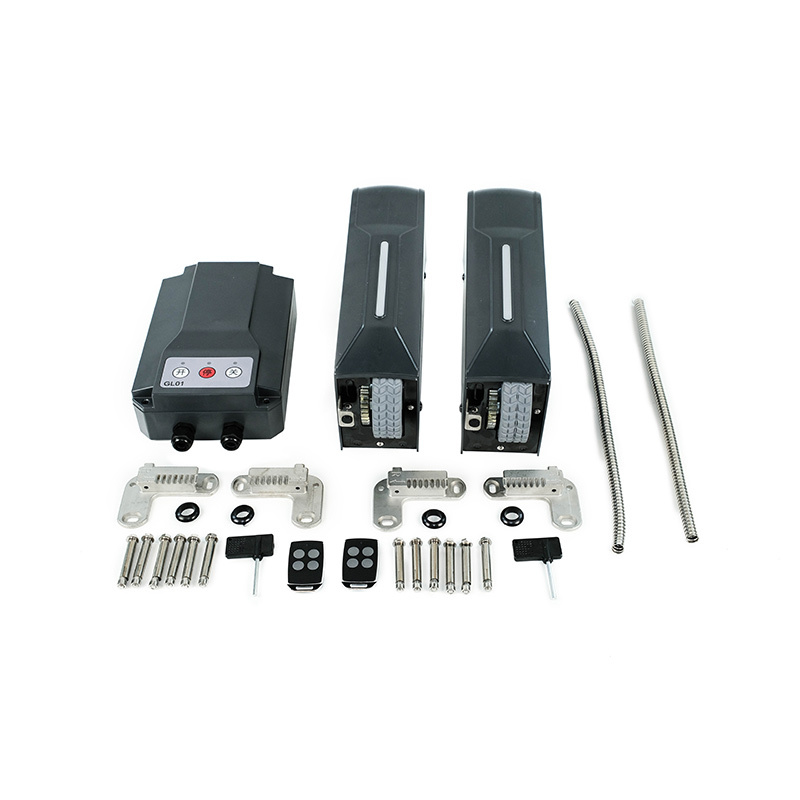

Standard Unit

• 2pcs gate motors
• control board & box
• 2pcs remote controls
• manual release key
• user manual
• bolts & nuts
