PK600GL Modern Design Swing Gate Motor 600KG Roller for Villa Application

Name: PK600GL Modern Design Swing Gate Motor 600KG Roller for Villa Application
Brand: SHENZHEN SINOMATIC TECHNOLOGY CO., LIMITED
SKU: PK600GL
Price: 1,501.00 USD
Availability: InStock

Place of Origin	Shenzhen, China.
Brand Name	SINOMATIC
Certification	CE/ ISO
Model Number	PK600GL

Product Details

Highlight:

600KG Roller Swing Gate Motor

Villa Application Swing Gate Motor

Modern Design Swing Gate Motor

Payment & Shipping Terms

Minimum Order Quantity

Sample order accepted

Price

negotiable

Packaging Details

Carton/Pallet

Delivery Time

5-10 working days after payment received

Payment Terms

L/C, D/A, D/P, T/T, Western Union, , Alipay, Wechat, Paypal, Cash

Supply Ability

10,000 pcs per month

Product Description

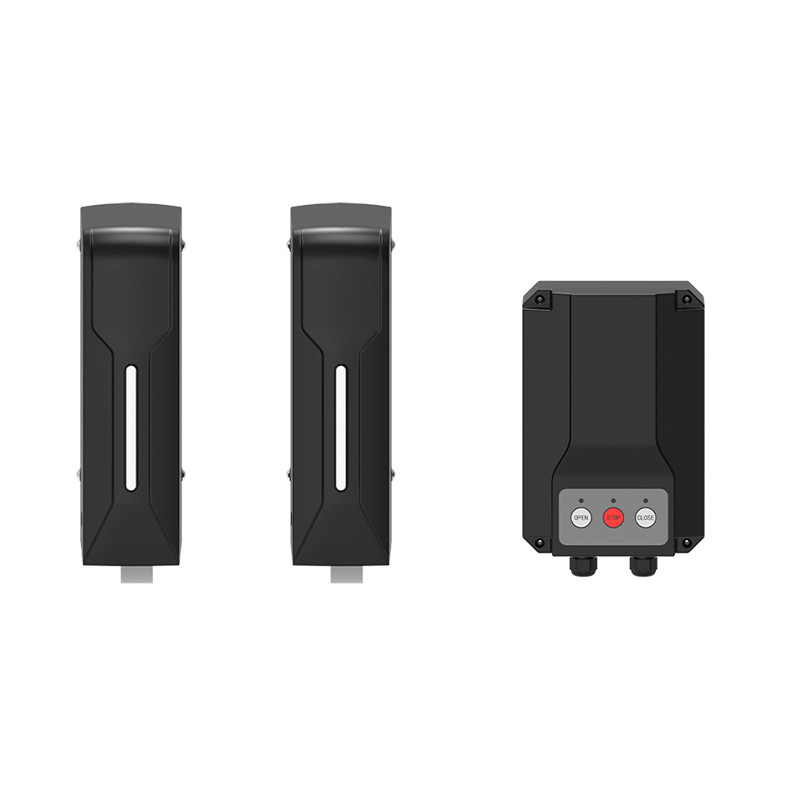

PK600GL Modern Design Swing Gate Motor

600KG roller wheel swing gate opener designed for villa applications, featuring advanced safety and automation capabilities.

Product Overview

Gear driven with self-locking mechanism for enhanced security
Dual windproof design eliminates need for additional electric locks
Manual release function during power outages
Supports both single and double door operation modes
Soft start and slow stop technology with obstacle detection
Automatic closing capability with low power mode

Technical Specifications

Unit Model	PK600GL
Power Supply	AC220V/50Hz; AC110V/60Hz
Maximum Gate Weight	400kg/leaf
Motor Power	40W
Driving Method	Linkage
Limit Switch	No limit switch
Max Speed	1.75rpm
Max. Single-Leaf Length	4 meters
Operating Cycle	15 seconds per 90° (approx.)
Remote Control Range	≥30m
Recording of Up Remotes	32
Frequency	433.92MHz
Work Duty	S2 30min
Working Temperature	-20℃~+50℃
Package Weight	18kg

Advanced Features

Flexible installation: 2 openers or 1 opener with single control box
Ground wheels for secure positioning against ground stops
Travel time protection with standard 30-second setting
User-selectable auto-close function
Smooth operation with soft start and slow stop technology
Automatic remote control learning capability
Keypad and single button interface options
Alarm lamp, photo beam & safety beam interfaces
Compatible with articulated arm or sliding arm configurations
Emergency manual key release for safety

Standard Package Contents

2 gate motors
Control board & box
2 remote controls
Manual release key
User manual
Bolts & nuts
