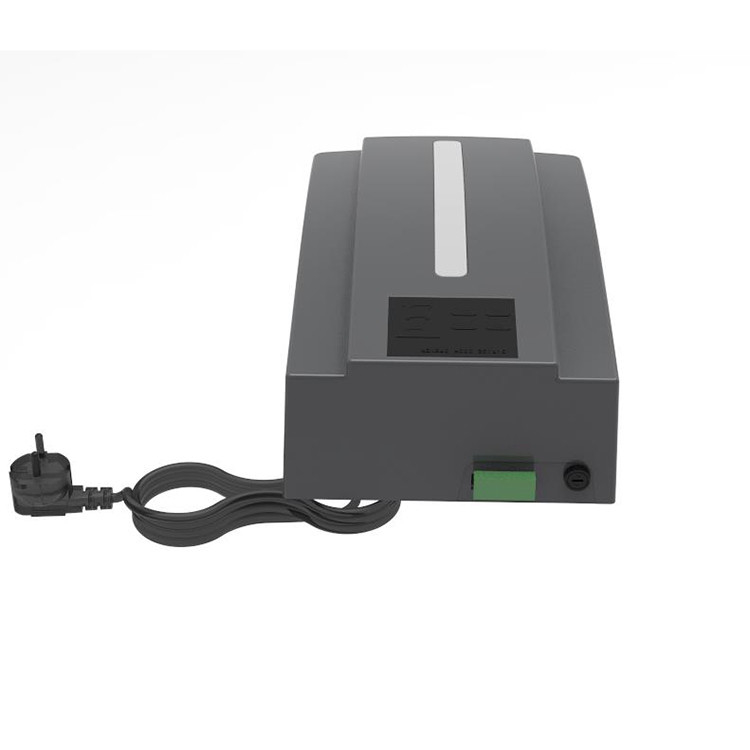

PD800 DC24V 10 Sqm Garage Door Opener Motor
Professional DC24V garage door opener motor with universal remote control, designed for residential applications with advanced safety features and energy-efficient operation.
Technical Specifications
| Warranty |
1 Year |
| After-sale Service |
Online Technical Support, Free spare parts, Return and Replacement |
| Project Solution Capability |
Graphic design, 3D model design, total solution for projects, Cross Categories Consolidation |
| Application |
Residential |
| Design Style |
Traditional |
| Place of Origin |
China |
| Brand Name |
SINOMATIC |
| Model Number |
PD800 |
| Power Supply |
AC110V-AC220V |
| Motor Power |
DC24V/100W |
| Limit Setting |
Electronic |
| Drive Mechanism |
Chain / Belt |
| L.E.D |
24V / 15pcs LED bulbs |
| Protection Level |
IP20 |
Advanced Features
- Automatic safety reverse protects children and property
- Soft start-soft stop function for quieter operation
- Auto-Close function automatically closes door upon entering or exiting
- Self-learning open and close obstruction force detection
- Electronic limit with simple adjustment
- Available terminals for Photo beams, extra receivers, wire or wireless wall switch, caution light, and pass door protection device
- Energy-saving L.E.D courtesy light with battery backup option
- Self-lock in gear motors for enhanced security
- Lower headroom design: flush mounting with only 30mm space requirement
Default Packing List
- 1 gate motor
- Built-in control board & box
- 2 remote controls
- 3150mm chain rail
- User manual
- Mounting parts
Important Safety Recommendations
1. PLEASE READ CAREFULLY AND ADHERE TO ALL SAFETY AND INSTALLATION RECOMMENDATIONS.
2. The opener is designed and manufactured to meet local regulations. The installer must be familiar with local regulations required in respect of the installation of the opener.
3. Unqualified personnel or those persons who do not know the occupational health and safety standards being applicable to automatic gates and other doors, must in no circumstances carry out installations or implement systems.
4. Persons who install or service the equipment without observing all the applicable safety standards will be responsible for any damage, injury, cost, expense or claim whatsoever any person suffered as a result of failure to install the system correctly and in accordance with the relevant safety standards and installation manual whether directly or indirectly.
5. For additional safety we strongly recommend the inclusion of Photo Beam. Although the opener incorporates a pressure sensitive Safety Obstruction Force system the addition of Photo Beam will greatly enhance the operating safety of an automatic garage door and provide additional peace of mind.
6. Make sure that the garage door is fully open & stationary before driving in or out of the garage.
7. Make sure the garage door is fully closed & stationary before leaving.
8. Keep hands and loose clothing off the opener and garage door all the time.
9. The Safety Obstruction System is designed to work on STATIONARY objects only. Serious personal injury, death and / or property damage may occur if the garage door comes into contact with a moving object.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
User Manual
Download User Manual (PDF)
