Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile
  • Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile
  • Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile
  • Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile
Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile

Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DA02
Product Details
Drive Mode:
BLDC Motor
Motor Voltage:
DC24V
Material Of Cabinet:
304 Stainless Steel
Control Device:
Reader/fingerprint/face Etc
Application:
Indoor
Control Signal:
12V Level Signal / Relay Signal
Highlight:

DC24V Access Control Turnstiles

,

304 Stainless Steel Drop Arm Turnstile

,

PLC Control Drop Arm Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

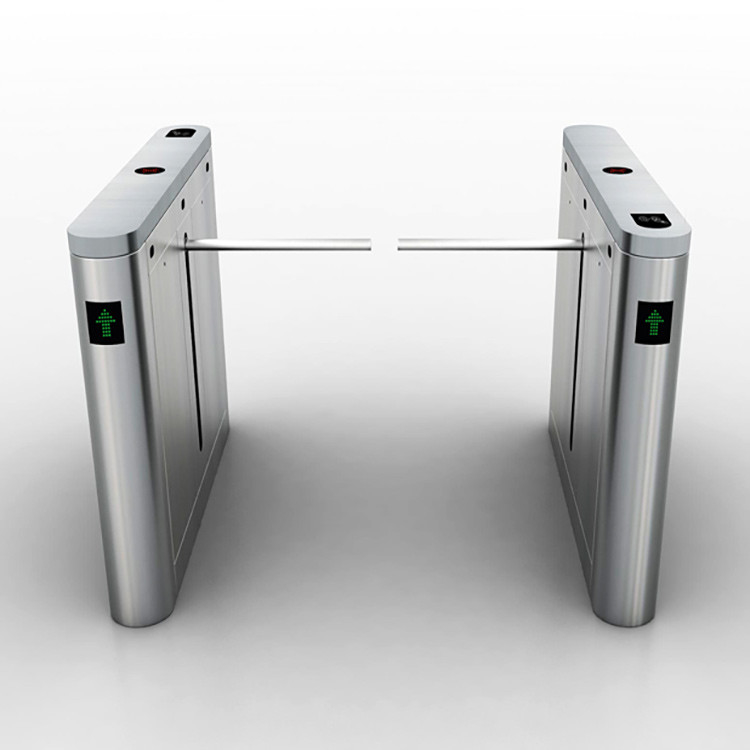

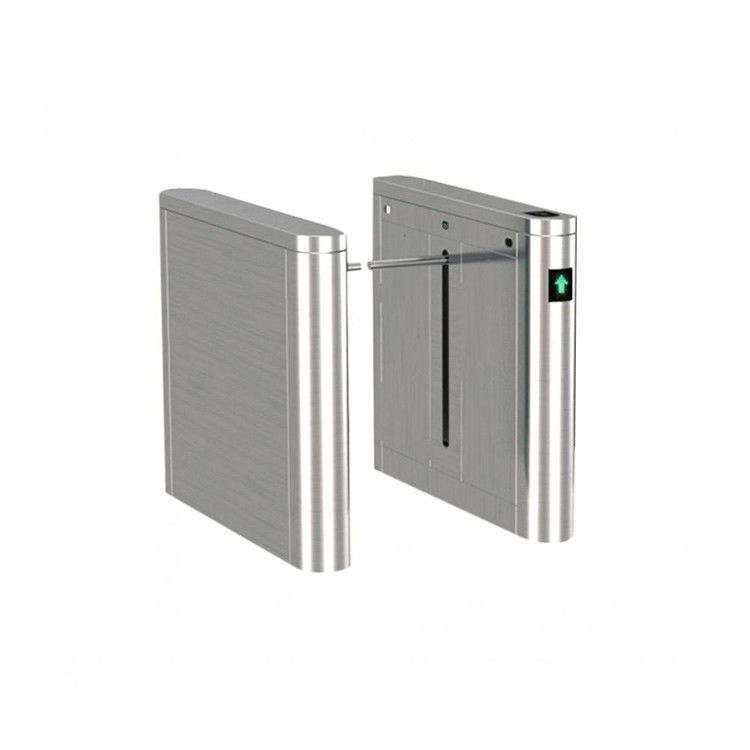

Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile
Product Overview
The Smart PLC Control Drop Arm Turnstile is constructed from bent 304 stainless steel plate, featuring an aesthetically pleasing design that is both durable and corrosion-resistant. This access control system includes standard electric interfaces for seamless integration with various card reading technologies including magnetic cards, bar code cards, ID cards, and IC cards. The system ensures orderly personnel flow while preventing unauthorized access, and includes a dedicated fire control interface for emergency evacuation scenarios.
Main Functions & Features
  • User-friendly operation with comprehensive maintenance features including self-diagnostic capabilities and alarm systems
  • Flexible code dialing settings with dozens of customizable performance options
  • Dual protection through infrared and mechanical anti-clamping mechanisms with automatic stop/rebound during impact
  • Multiple alarm patterns for unauthorized access, reverse passing, anti-trailing, and overtime passing detection
  • Impact-resistant design with automatic arm locking when no open signal is received
  • Anti-reverse passing protection with immediate closure and alarm activation
  • High-brightness access indicator lights with intuitive user prompts
  • Configurable normal open/close modes via code-dialing or external manual controls
  • Automatic detection and reset functionality with adjustable timeout periods
  • Emergency automatic opening for evacuation during fire, power failure, or other critical situations
  • Compatible with various control equipment through relay switch signal reception
  • Multiple passageway configurations including one-way, two-way, and one-way controlled with reverse free passage
  • Robust environmental adaptability for harsh conditions including extreme weather, electrical fluctuations, and environmental changes
Technical Specifications
Description Parameters
IP Rating IP54
Passage Speed 30 persons/minute
Power Supply AC220V/110V, 50/60Hz, DC24V
Drive Mode Motor drive
Maximum Power Consumption 100W
Humidity ≤90% (non-condensing)
Noise Level ≤50dB
Service Life 10,000,000 cycles
Outside Packing Dimensions 1200*280*980mm
Working Environment -20°C to +60°C
Gross Weight 70-80kg
Smart PLC Control 304 Stainless Steel Access Control Turnstile Gate Drop Arm Turnstile 0
Frequently Asked Questions
What type of entry solutions do you carry?
We provide a comprehensive range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, speed gates, and more.
Do you do customization?
Yes, we offer customization services with various sizes and mechanical configurations tailored to specific customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our manufacturing facility produces most components in-house, from simple housing elements to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a dedicated in-house engineering team comprising R&D technical specialists and software development professionals.
What type of access control comes with your machine?
Our turnstile systems are compatible with various access control technologies including face ID recognition, fingerprint sensors, ID/IC card readers, QR code scanners, and bar code systems.
