Controlling Access to Security Systems Electronically High Speed Cylinder Revolving Turnstile
PRODUCT DESCRIPTION

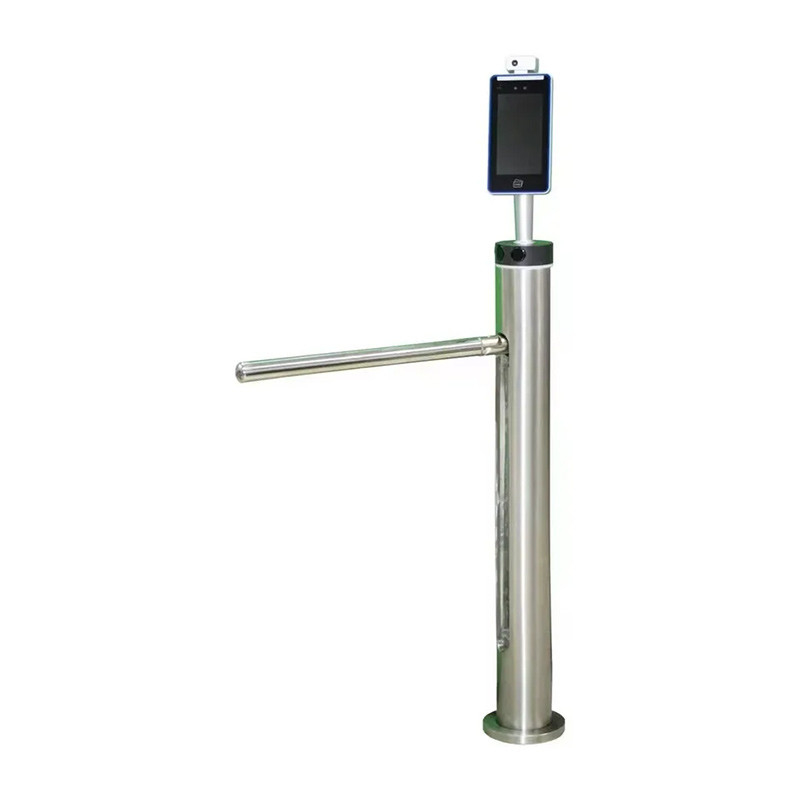

Single-arm barrier gates are intended to limit access to a certain area while simultaneously giving authorized workers a speedy and effective way of entrance. They can be set up to work with magnetic stripe cards, proximity cards, or biometric scanners, as well as other access control systems.
These turnstiles are usually constructed from sturdy materials like stainless steel, making them appropriate for usage in busy places. Additionally, they frequently include a variety of safety features, such anti-tailgating sensors, to assist stop unwanted access or escape. In general, single-arm barrier gate are a useful and efficient way to manage the flow of pedestrian traffic in a safe and regulated way.
FUNCTIONAL CHARACTERISTICS
1) With the physical limit function, convenient for user maintenance and use
2) Illegal entry has the alarm warning function.
3) Anti-flushing function. When no opening signal is received, the swing arm is automatically locked.
4) Infrared / mechanical double anti-clamp function, in the process of swing arm reset resistance, the motor will automatically stop working within the specified time, and the strength is very small, and send the alarm.
5) With the automatic reset function, the pedestrian swipe the card is valid. If the pedestrian does not pass within the specified time of the system, the system will automatically cancel the pedestrian passage authority.
6) Standard external communication interface, which can be connected to multiple card readers, and can achieve remote control and management through the management computer.
PRODUCT SPECIFICATIONS
Drive motor | Servo brushless DC motor 24V, 200W |
Transmission mode | planetary gear, helical gear |
Passing speed | 50 persons/min |
Control information | switching signals |
Size(mm) | 110 (diameter)*990 (height) |
Case material | 304 stainless steel 110 round tube, thickness 1.5mm |
Gate lever swing angle | 90 degrees up and down |
Anti-kick function | automatic alarm, automatic reset |
Protection function | anti-pinch, anti-pressure |
Scope of application | office buildings, supermarkets, nucleic acid monitoring points, cinemas |
PRODUCT DIMENSION
APPLICATION
This pedestrian entry control drop arm barrier is frequently used in public places including stadiums, theme parks, and office buildings. It consists of a single spinning arm that normally only permits one person to pass through at a time.
FAQ
1.What type of entry solutions do you carry?
We carry a full range of entry solutions including,tripod turnstile, full height turnstile,flap barrier swing gate and
speed gate etc.
2.Do you do customization?
Yes.we do customization with different sizes and different mechanics according to customer's needs
3.Are you a trading company?Do you only do assembly in house?
No.we are not trading company.Our factory manufactures most of the items including the simple housing till the
complicated mechanics.
4.Do you have inhouse engineering team?
Yes,we do have our inhouse engineeringteam which consist of R&D technical and software development team.
5.What type of access control comes with your machine?
Our machines can be tie with face ID fingerprint sensor,ID/IC card reader, QR code or bar code etc.
