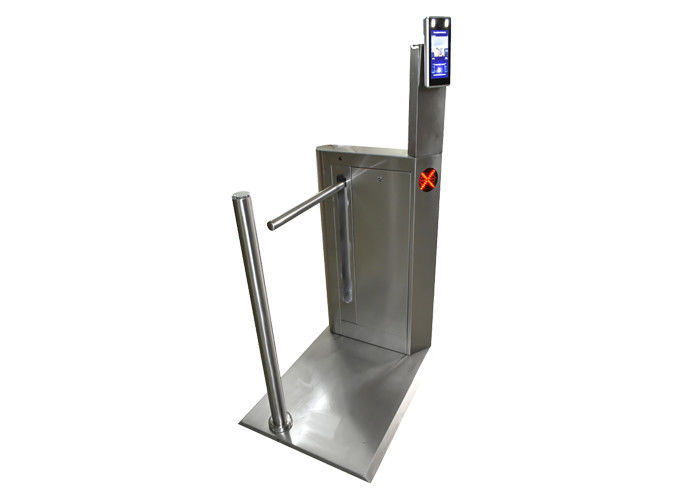

SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection
  • SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection
  • SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection
  • SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection
  • SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection
SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection

SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DA01
Product Details
Arm Opening / Closing Time:
1S
Arm Closing:
1S
OEM/ODM:
Supported
Arm Length:
450mm(default)
Direction:
Single Or Bi-direction
Size Of Housing:
600*260*1000mm
Max Flow Rate:
25 To 30 Person Per Minute
Material:
SS304
Package:
Wooden Box
Highlight:

SS304 Turnstile Barrier Gate

,

Face Recognition Turnstile Barrier Gate

,

450mm Arm Waist Height Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description
SS304 Face Recognition 450mm Arm Turnstile Barrier Gate
Human body temperature detection with face recognition integration entrance drop arm turnstile
Drop Arm Turnstile Specifications
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 40W
Access device input voltage Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
Max flow rate 25 to 30 person per minute
Housing dimension OEM
Arm length 450mm (default)
Working temperature -20°C~+60°C
Current 3A
Control circuit DC24
Working humidity 0~95%RH
Time of opening or closing less than 2S
Normal life 5 million times
Drop Arm Turnstile Features & Functions
  • Fault detection and alarm functions, easy to use and maintenance
  • The running status can be programmed and controlled with the built-in keyboard on the main board
  • Mechanical anti-pinch function
  • Anti-breakthrough function. The gate is locked automatically until opening signal received
  • Synchronization functions (for dual gates)
  • Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
  • Gate can be set as normally open or normally closed
  • Can be used with variety of card readers: IC / ID card readers, barcodes, fingerprints, etc. (Access controller needed)
  • Direction can be set as uni-direction or bi-direction
  • LED direction indicator
  • Gate auto opens when power off and auto close when power on, complying with fire safety requirements
  • Alarm function, in case of illegal intrusion and reverse intrusion, etc.
  • Support infrared photocell for anti-pinch and reset function
Face Temperature Measurement Device Functions & Features
Industrial chip platform and system:
  • Use Hisilicon chip, mini Linux, high stability
  • Low power consumption (as low as 4W)
  • Support multiple styles of shell and customized appearance
High precision face recognition algorithm:
  • Embedded algorithm, millisecond comparison
  • Accurate monocular detection, safe and efficient
  • Up to 99.8% accuracy
Additional capabilities:
  • Multi scene image exposure and correction algorithm
  • Support temperature measurement, display and high temperature warning
  • Support temperature interface protocol
  • Support mask reminding
Face Temperature Measurement Device Specifications
Temperature measurement distance ＜1m
Optimum distance 0.5-0.8m
Temperature measurement accuracy ±0.3℃
Measuring range -40 to 85℃
Effective emissivity 0.97±0.02
Wavelength size 5.5-14um
Response time ＜1s
SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection 0 SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection 1
Fields of Application
  • Station, dock, site, school, supermarket entrance control management
  • Exhibition center, swimming pool, tourist attractions and other ticket entrance and exit control management
  • Enterprises and institutions attendance, access control, consumption entrance and exit control management
  • Special channel access control
Product Dimension
SS304 Face Recognition Drop Arm Turnstile with 450mm Arm and Temperature Detection 2
