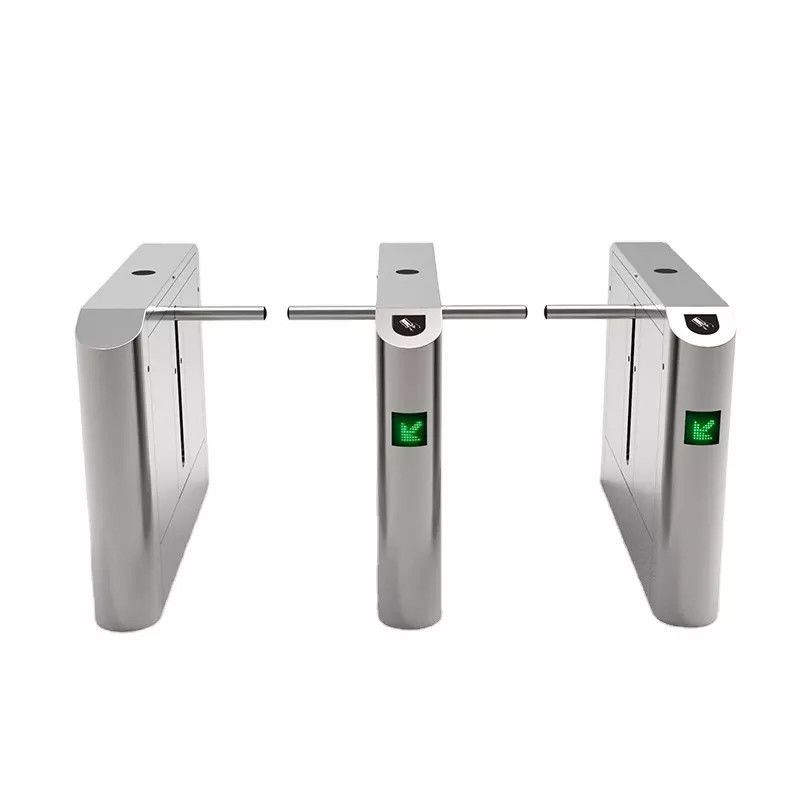

Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier
  • Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier
  • Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier
  • Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier
Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier

Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DA02
Product Details
Dimension:
1200×280×980 Mm(can Be Customized)
IP Rate:
IP54
Drive Mode:
Motor Drive
Motor Voltage:
DC24V
Material Of Cabinet:
304 Stainless Steel
Motor Type:
Brushless
Highlight:

Drop Arm Turnstile Barrier IP54

,

Motor drive Drop Arm Turnstiles

,

Stainless Steel Drop Arm Barrier Turnstile

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description
Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier
Drop Arm Turnstile is manufactured from bent stainless steel plate, featuring an attractive appearance, durability, and corrosion resistance. The system includes standard electrical interfaces for easy integration with various access control readers including magnetic cards, barcode cards, ID cards, and IC cards. This provides organized and secure personnel access while preventing unauthorized entry. A dedicated fire control interface ensures emergency evacuation capabilities with rapid arm lowering during fire emergencies.
Shenzhen China Public Gate Access Control System Single Bar Drop Arm Turnstile Barrier 0
Technical Parameters
Parameter Specification
Framework 304 Stainless Steel
Dimensions 1200*200*980 mm (can be customized)
Arm length 300-500mm
LED indicating light One
Card-reading window Two
Rated power 100W
Operating temperature -25℃ ~ +60℃, RH ≤90%
Related humidity ≥90%RH
Communication Interface RS485, distance ≤1200m
Power supply AC 220V/110V ±10% 50/60MHZ (optional)
Normal Open Transit speed 40 persons per minute
Normal close Transit speed 30 persons per minute
Main Functions and Features
  • Easy operation and convenient maintenance with self-diagnostic and alarm functions
  • Flexible code dialing settings with dozens of performance options
  • Infrared and mechanical anti-clamping for double protection
  • Automatic stop or rebound with alarm during sudden impact
  • Multiple alarm patterns including illegal intrusion, reverse passing, anti-trailing, and overtime passing
  • Impact resistant design with automatic arm locking without open signal
  • Anti-reverse passing protection with immediate closure and alarm
  • High brightness access indicator lights with user-friendly prompts
  • Adjustable normal open/close modes via code-dialing or manual button
  • Automatic detection and reset function with adjustable timeout
  • Emergency opening for evacuation during fire or power failure
  • Compatible with various control equipment and relay switch signals
  • Multiple passageway modes: one-way, two-way, or one-way controlled with reverse free passage
  • Strong environmental adaptability for harsh conditions including extreme weather
Frequently Asked Questions
What type of entry solutions do you carry?
We offer a comprehensive range of entry solutions including tripod turnstiles, full height turnstiles, flap barrier swing gates, and speed gates.
Do you do customization?
Yes, we provide customization services with different sizes and mechanical configurations according to customer requirements.
Are you a trading company? Do you only do assembly in house?
No, we are not a trading company. Our factory manufactures most components, from simple housings to complex mechanical systems.
Do you have in-house engineering team?
Yes, we maintain a complete in-house engineering team including R&D, technical, and software development specialists.
What type of access control comes with your machine?
Our systems can integrate with various access control technologies including face ID, fingerprint sensors, ID/IC card readers, QR codes, and barcode systems.
