100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector
  • 100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector
  • 100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector
  • 100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector
100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector

100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DBX100
Product Details
Cabinet Thickness:
2.0mm
Cabinet Shape:
Cylinder
Collection Bin Dimension:
13.5 X 13.5 X 29 Cm
Card Capacity:
Maximum 280 Cards
Cabinet Diameter:
219mm
Net Weight:
16 Kg
Highlight:

Card Collector Access Control Turnstiles

,

Dropbox card Access Control Turnstiles

,

Access Control Dropbox card collector

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description
100% Accuracy Access Control Turnstiles Cylinder Dropbox Card Collector
100% accuracy Access control management system Dropbox valid and invalid card collector
Product Overview
The Dropbox Card Collector efficiently manages residents, visitors, contractors, and employees entering and exiting communities or buildings. Designed for indoor applications only, this system is not suitable for outdoor installation or coastal environments.
Key Applications
This dropbox-type card collector integrates with visitor management software to enable automatic visitor check-out functionality. Visitors no longer need to return cards to reception counters—simply dropping the visitor card into the DBX100 automatically checks them out in the SE-VMS software records.
Important: Dropbox is suitable for indoor application only. It is NOT suitable for outdoor installation or near sea side environments.

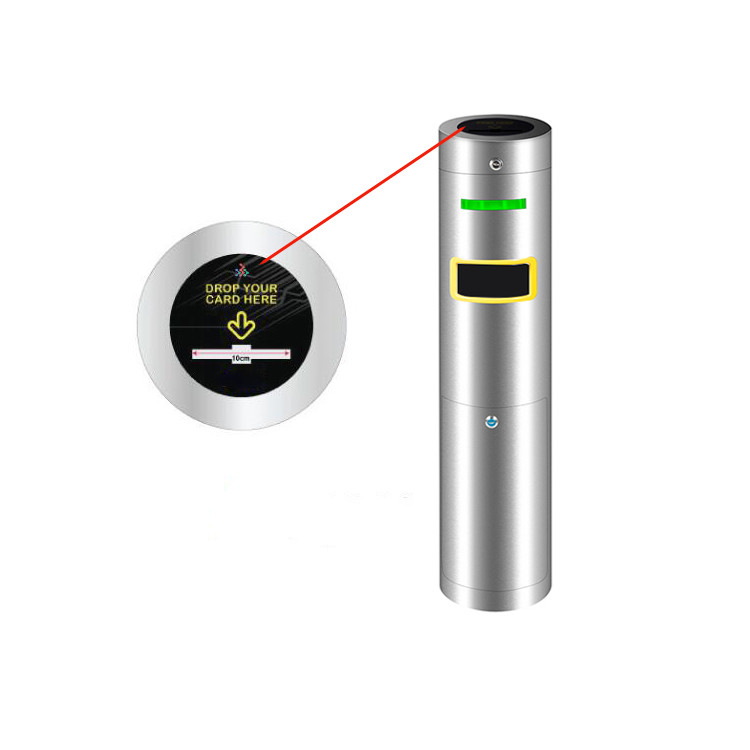

Dropbox Card Collector unit showing compact design and indicator lights
Product Specifications
Description Parameter
Power supply AC230 power input
Built in DC12V power supply
Power consumption Idle: AC 0.04A, DC 0.01A
Operation: AC 0.28A, DC 4.71-4.74A
Indicated light Blue: Power On
Green: Valid card
Red: Dropbox fully occupied
Collection bin dimension 13.5 x 13.5 x 29 cm
Can contain maximum 280 cards
Maximum card size 10 (W) x 9 (H) cm
Main Functions and Features
  • Accepts cards up to 10 cm wide
  • Compatible with any brand access control reader installed inside the dropbox
  • Visual indicator lights display operation status
  • Key-operated top cover for maintenance access
  • Key-operated bottom door for collection bin removal when full
  • Automatic card rejection when collection bin reaches capacity
  • Ideal for ticketing applications with reusable proximity cards
  • Seamless integration with visitor management software for automated check-out
Download Product Datasheet
Product Photos
Detailed view of Dropbox Card Collector showing internal components and card slot
