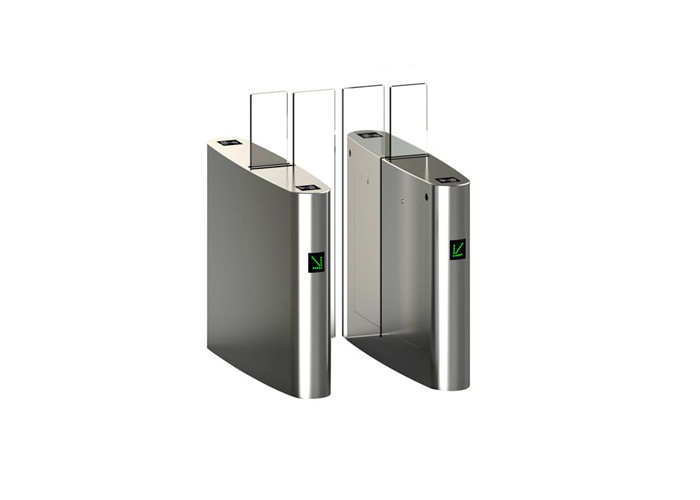

Anti Clipping BLDC Motor Acrylic Swing Turnstiles 100W Automatic Pedestrian Turnstile

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SLB01
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 1,000 pcs per month
Product Details
Input Voltage AC100V~240V, DC24V Max Flow Rate 30 Person Per Minute
IR Sensor 4 Paris(default) Flap Material 10mm Thickness Acrylic
Motor BLDC Motor Motor Voltage DC24V
High Light

Anti Clipping Acrylic Swing Turnstiles

,

BLDC Motor Acrylic Swing Turnstiles

,

100W Automatic Pedestrian Turnstile

Leave a Message
Product Description

Anti Clipping Acrylic Swing Sliding 100W Automatic Pedestrian Turnstile



PRODUCT DESCRIPTION



Sliding speed gate, adopts high standard brushed 304 stainless steel, double brushed surface treatment, dustproof,

rustproof, rainproof design, suitable for indoor and outdoor use. It is widely used for applications like stadium, apartment,

gym, museum, station, library and high-end buiding etc.



A special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage

flow is ensured, realizing a timely diverting of passengers. The product is featured as stable in performance, safe and

reliable, and can be used widely in the places where passenger flow is great and monitoring is needed such as stations,

harbors and guest house.







PRODUCT SPECIFICATIONS



1 integration system RFID system , face recognition system , ESD system (optional)
2 Frame material 304 stainless steel
3 Frame Size (W)330x(L)1200x(H)1000mm or customized
4 Drive DC motor
5 Rotation direction bi-directional and unidirectional
6 Controller adapts micro-computer controller can be programmed according to customer needs
7 Interface: standard input and output interfaces can be used for other integration systems
8 Signal source dry contact and high-low level signals
9 Power supply AC100V~240V, DC24V
10 Motor voltage DC24V
11 Indoor/outdoor temperatures -20 to 70°C
12 humidity range 95%
13 Switching time 1s
14 Traffic speed 30 persons/minute
15 Fault status power-off and giving free exit/entry path
16 Movement failure rate More than 5 millions
17 Waterproof No
18 Card reader area 2



PRODUCT FUNCTION AND FEATURES



1. Problem-self-checking function.


2. Many options of working ways: Bi-direction card reading; One direction card reading and another no reading;

One direction card reading and another freely. And single direction photocell controlled passing and close. Working

ways can be set in the control panel.


3. When power off, arm open automatically and power on again, arm will be held automatically.


4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the

control panel.


5. Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile

will cancel this passing right. And the regulated time period for passing can be set by managers.


6. If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back from the

Swing barrier and then take a valid card to be read for passing.



7. Direction display to guide passenger which direction is to go.


8. Anti-rush function: If there is no open signal, arm will be holding tightly.


9. Double anti-clipping function: Photocell anti-clipping and mechanical anti-clipping. When passenger is going through

the sliding barrier, photocell will detect out this situation and will not close. After passenger passed, arm will close

automatically. During its reposition, if arm meets any obstacle, arm will get back automatcially or stop working for a

while with very slight force. Also it will alarm.


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.
