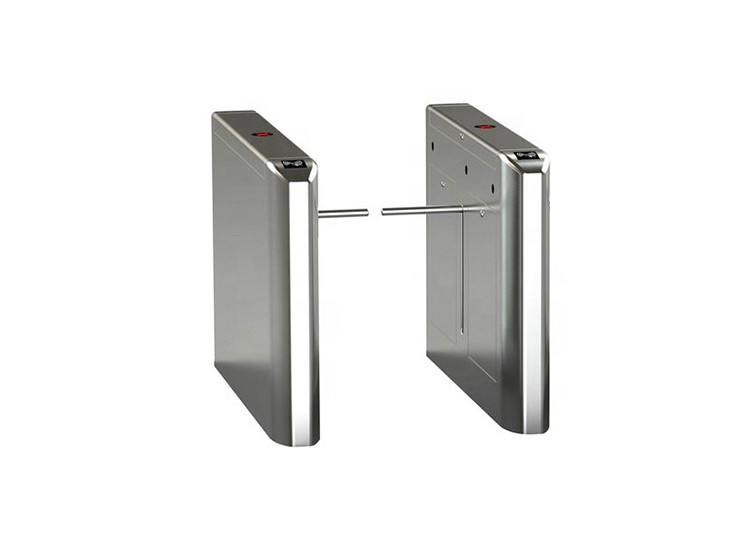

Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
  • Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
  • Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate
  • Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate

Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-DAB02
Product Details
Power Supply:
AC100V~240V
Motor Voltage:
DC24V
Motor Type:
BLDC
Service Life:
At Least 5 Million Times
Cabinet Material:
SS304
Sensor Function:
Anti Crawl/ Alarm/Auto Close
High Light:

Beam Sensors Drop Arm Turnstile

,

BLDC Drop Arm Turnstile

,

500mm Arm Access Control Security Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
500 pcs per month
Product Description

Access Control Security Gate Standard Safety Beam Sensors Drop Arm Turnstile



PRODUCT DESCRIPTION


Our drop arm barrier is aesthetically pleasing for high rise buildings, government centres, education campuses and

corporate headquarters. The barriers are designed and built to withstand rigorous passages while offering graceful

passage.

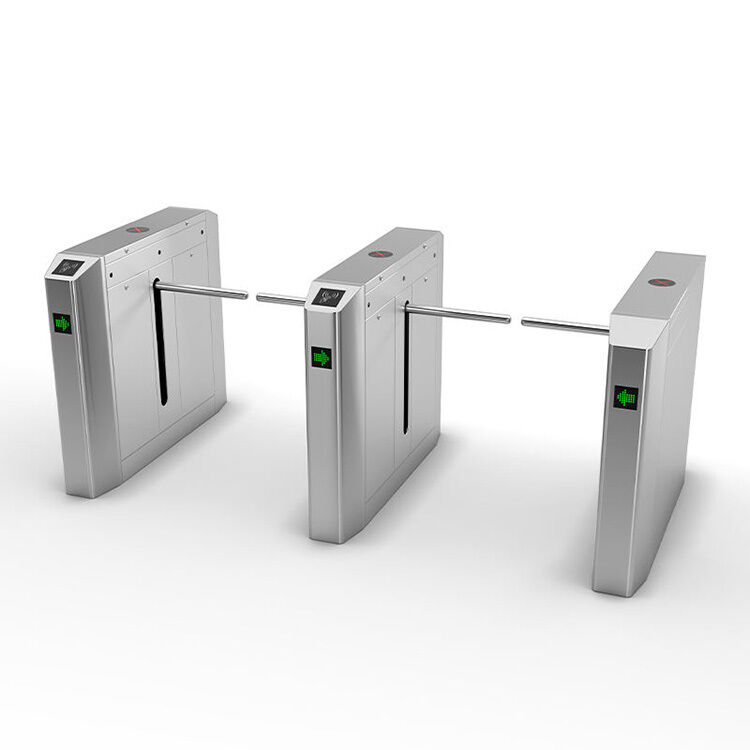

Beam Sensors Drop Arm Turnstile BLDC 500mm Arm Access Control Security Gate 0



OUR ADVANTAGES

  • The whole system runs smoothly, low noise, no mechanical impact.
  • Self-test function, when power on, system restoration automatic.
  • Single directional or Bi-directional is selectable.
  • LED indicator.
  • Automatic reset function: when tripod turnstile receives an open single, but passenger do not pass through the hallway within a specific time (default 5s), turnstile arm will lock automatically.
  • When power off, the arm will drop down automatically, which is complying with fire safety requirements.

PRODUCT TECHNICIAL SPECIFICATION



1. Power Supply: AC220V± 10V, 50Hz / AC110V± 10V, 60Hz
2. Power Consumption: 100W/24V
3. Temperature: -20 to 60 degrees
4. Humidity: < 95%, without concretion
5. Passage Width: < =600mm
6. Passing Speed: 40 persons/min (normal open), 30 persons/min (normal close)
7. Arm Open/Close Time: 1s
8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA
9. Communication Interface: RS485 (Distance: < =1200m)



Parameters
Framework
304 Stainless Steel
Dimensions
1200×220×1000 mm(can be customized)
Arm length
300-500mm
LED indicating light
One
Card-reading window:
Two
Rated power
100W
Operating temperature
-25℃ ~ +60℃, RH ≤90%
Related humidity
≥90%RH
Communication Interface
RS485,distance ≤1200m
Power supply
AC100V ~ 240V
Opening Transit speed:
35 persons per minute
Closing Transit speed:
30 persons per minute



MAIN FUNCTIONS AND FEATURES



1. Single/double walkway--controlled in one direction or both.


2. A valid lock action can allow one passage at one time.


3. Normally open--the machine will unlock when a valid signal is received.


4. It will lock automatically if passage through turnstile is not completed withinpreset time, the set time can be

adjusted via parameter change.


5. LED indicator light :green and red indicate the passing information.



6. Normal open and normal close can be controlled by external button.


7. Auto detect and reset function.


8. The system is equipped with step less position device and the operation process is controlled by sensors

without mechanical impact .


9. Digital-controlled (CNC) processing technology,fine surface treatment and corrosion resistance .


10. Standard external electric interface with photoelectric isolation enchance incorporateall kinds of control

equipments thus extremely convenient for system integration .


11. Remote control and setup .


12. Extended functions: counting, audible and visual alarm,fire alarm and linkage, Photoelectric Beam Detector.





FAQ


1. What type of entry solutions do you carry?
We carry a full range of entry solutions including,tripod turnstile, full height turnstile,flap barrier swing gate and

speed gate etc.



2. Do you do customization?
Yes.we do customization with different sizes and different mechanics according to customer's needs



3. Are you a trading company?Do you only do assembly in house?
No.we are not trading company.Our factory manufactures most of the items including the simple housing till the

complicated mechanics.


4. Do you have inhouse engineering team?
Yes,we do have our inhouse engineeringteam which consist of R&D technical and software development team.



5. What type of access control comes with your machine?
Our machines can be tie with face ID fingerprint sensor,ID/IC card reader, QR code or bar code etc.
