DC24V Brushless Motorized SS Swing Barrier Gate Acrylic Outdoor

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02M
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month
Product Details
Housing Material 304 Stainless Steel Power Supply AC100V~240V, DC24V
Arm Lenght Customized Size Mini Size
Application Indoor/outdoor Control Signal Dry Contact/relay Signal
High Light

Motorized SS Swing Barrier Gate

,

DC24V Brushless Swing Barrier Gate

,

Acrylic SUS304 Pedestrian Turnstile Gate

Leave a Message
Product Description

Automatic DC Brush-Less Motorized Stainless Steel Square Shape Swing Barrier Gate



PRODUCT DESCRIPTION



SN-SB02M is an automatic DC brushless motorized stainless steel swing barrier. Swing barrier has smallest

installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller

or user with big luggage to pass through with comfort.

SN-SB02M compact size allow it to easily fit into places with very limited space. Access control and time

attendance reader can be integrated into top cover.

SN-SB02M design is simplified to achieve optimum function at more affordable cost. Control system mechanism

is modular for easy maintenance servicing and part replacement.

SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user in building

lobby. Ideal for low traffic and light duty site that requires more affordable solution.



Product specifications



Structure parameters
Housing material 304 grade stainless steel
Thickness 1.5+1.0mm
mainboard Independent development mainboard
Arm material Acrylic/SUS304
Technical parameters
Size 200*200*1000mm
Lane width of single unit 800mm
Lane width of a pair 1600mm
Passing speed 30--35people/min
Open/close speed 0.2--0.6 sec
Weight 40KG
Turning angle 90 degree
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -25 to 70℃
Relative humidity 5% to 95%
Package Carton box inside (Wooden case optional)
Electronic parameters
Power supply 110-220V/AC, 24V/DC
Rated power 100W
Input signal Dry contact
Driving motor Brushless motor
Method of position Limiter





Application


SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user or user
with big luggage. SN-SB02M is for indoor usage and also outdoor usage(with shelter)

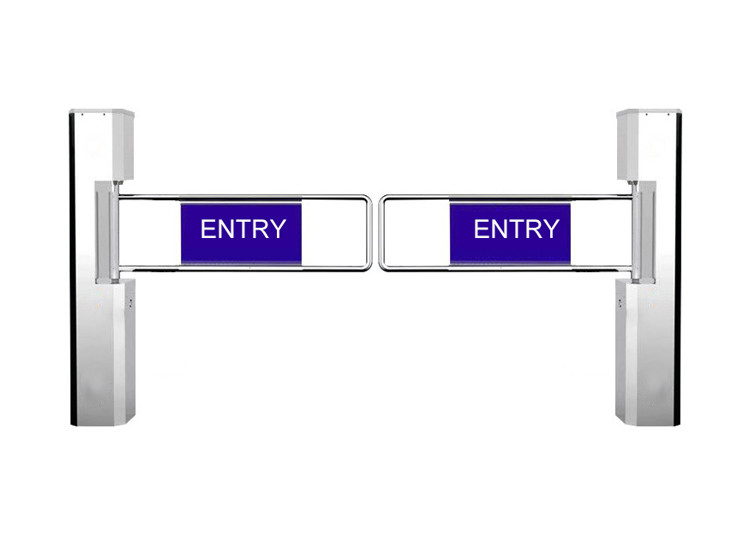

DC24V Brushless Motorized SS Swing Barrier Gate Acrylic Outdoor 0



FUNCTION AND FEATURES



1. WIDEST OPENING

Compared to tripod turnstile and flap barrier, swing barrier allow widest opening clearance.
The slim form factor only take up minimum space from passage clearance space. 2 unit swing barrier can be installed

on same lane to give maximum clearance 1210mm (inclusive 10 mm clearance).



2. CUSTOMIZE OPENING

Swing barrier allow customizable opening. Arylic gate can be cut short according to clearance available at site to
achieve perfect fitting.Control system will auto synchronize both swing barrier installed in the same lane. Both swing

barrier will open and close at the same time.



3. EASY INTEGRATION

A push button or access control reader can be used to trigger the swing barrier to open via simple dry contact signal.

After delay timer elapsed, swing barrier will automatically close back by itself.



4. DOUBLE SAFETY

Optional IR sensor can be installed to auto reverse the gate if obstacle is detected during closing. This prevent the

closing gate to hit user that is still in the lane passage.



5. EMERGENCY RECOVERY

During power failure, swing barrier will automatically open for free pass through. This will fast escape in the event of

emergency. When the power resume, swing barrier will automatically close back.



6. Support bi-directional opening



7. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on

swing barrier control panel.



8. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing

barrier will automatically close back to resume security level.



9.Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release

reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and

control panel from being damaged due to overload.



10. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way.

This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
