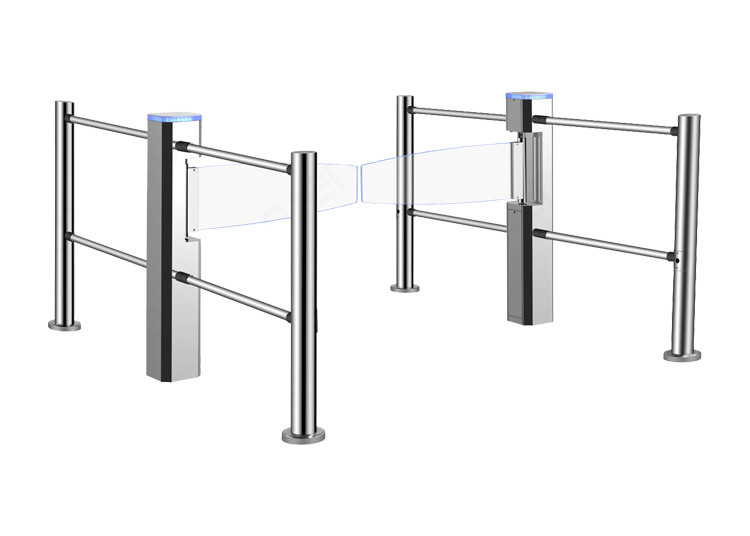

100W MCBF SS304 Optical Swing Barrier Gate 24VDC Acrylic With LED Indicator
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-SB02M |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-10 working days after payment received |
Payment Terms | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability | 3,000pcs per month |
Arm Material | SS304/acrylic | Housing Material | 304 Stainless Steel |
---|---|---|---|
MCBF | 5 Million Times | Power Supply | AC100V~240V, DC24V |
Arm Lenght | Customized | Size | Mini Size |
High Light | SS304 Optical Swing Barrier Gate,100W MCBF Swing Barrier Gate,24VDC Acrylic Pedestrian Turnstile Gate |
Air Shipping Available Mini Size Optical Swing Barrier Gate Turnstile Factory
PRODUCT DESCRIPTION
The swing barrier gate is an intelligent control device for the entrance and exit of the pedestrian passage. The swing
barrier gate is a part of the entrance management system, combined with computer and access control system,
attendance system, ticketing system, which can realize various of functions for different scope. Advantage of swing
gate is the channel width can be extend easily, support motor bike bicycle and wheelchair pass.
SN-SB02M is the minimum optical swing barrier gate, single working, lower air freight cost for sample order, with LED
indicator for access, and optical swing can be extended according to project requirement.
Product specifications
Structure parameters | |
Housing material | 304 grade stainless steel |
Thickness | 1.5+1.0mm |
mainboard | Independent development mainboard |
Arm material | Acrylic/SUS304 |
Technical parameters | |
Size | 200*200*1000mm |
Lane width of single unit | ≤800mm |
Lane width of a pair | ≤1600mm |
Passing speed | 30--35people/min |
Open/close speed | 0.2--0.6 sec |
Weight | 40KG |
Turning angle | 90 degree |
MCBF | 5.000.000 times |
Application | Indoor or outdoor |
Rotating directional | Single way or Bi-directional adjustable |
Noise | <55db |
Operating temperature | -25 to 70℃ |
Relative humidity | 5% to 95% |
Package | Carton box inside (Wooden case optional) |
Electronic parameters | |
Power supply | 110-220V/AC, 24VDC |
Rated power | 100W |
Input signal | Dry contact |
Driving motor | Brushless motor |
Method of position | Limiter |
Application
SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user or user
with big luggage. SN-SB02M is for indoor usage and also outdoor usage(with shelter)
Main features
- Support bi-directional opening
- Can integrate with access control system.
- Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
- Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
- During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
- Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
- Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
- Gate length can be easily customized to fit site requirement.
- Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
- Gate motor mechanism is self lock at open and close position.
