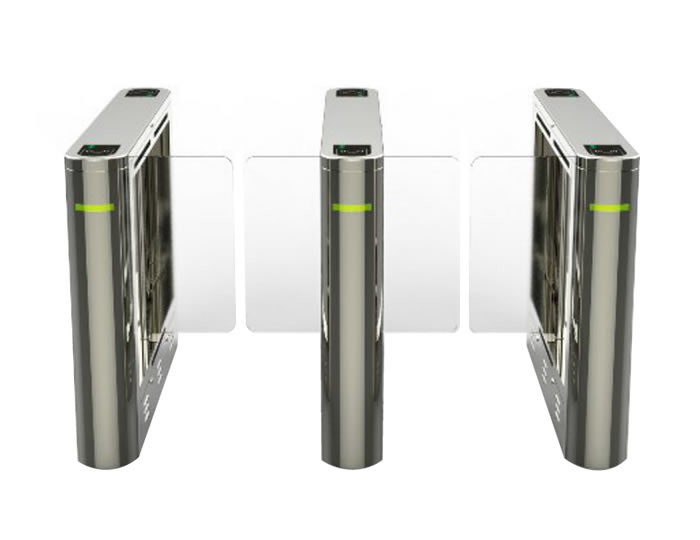

IR Sensor IP44 40W Acrylic Swing Barrier Turnstile Fast Pass Speed BLDC

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB05
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 1,000 pcs per month
Product Details
Control Signal Dry Contact/12V Level Signal IP Rate 44
Material SS304, Acrylic Remote Control Optional
Motor Power 40W Communication Interface Dry Contact
Passing Rate/NO 35-40persons/min
High Light

40W Acrylic Swing Barrier Turnstile


IP44 Acrylic Swing Barrier Turnstile


BLDC Swing Turnstile Gate

Leave a Message
Product Description

Fast Pass Speed Multiple Pairs Of IR Sensor Applied Swing Acrylic Barrier Turnstile




The swing gate realizes blocking and release by rotating and swinging. The materials are commonly used in stainless

steel, plexiglass, tempered glass, and some also use metal plates outsourcing special flexible materials (to reduce the

damage to pedestrians).


It is mainly used for the management of entrances and exits. The usual application places only

allow people to pass, or people who tow luggage, and people with disabilities. Considering that swing gates can achieve

wider channel characteristics than wing gates.


Most of the swing gate channels can be mixed with pedestrians, bicycles, mopeds, disabled vehicles and other non-motorized








SINOMATIC Swing gate is an intelligent channel administration device that has been carefully developed, developed

and produced over the years. It is a high-tech product primarily for intelligent administration of personnel channels.

The gadget combines mechanical, digital, microprocessor control and numerous identification applied sciences,

and is equipped with quite a lot of identification system devices and reliable efficiency safety units, alarms, direction

indicators, and extended friendliness. The LED counting display interface coordinates the clever control and

management of the channel.




Swing Barrier Gate
Place of Origin
Guangdong, China
Brand Name
Product Name
Swing barrier verification
RFID, fingerprint, facial optional
Swing gate direction
one-way, bi-direction
Housing size
  Housing material    SS304
Passage width
500 to  900mm (support customization)
Housing material
304 stainless steel/Acrylic
Working environment
Indoors or outdoors with shed





1, Fault self-check and alarm prompt function, convenient for users to maintain and use;

2, Through the built-in small button on the main control board, the running status of the device can be programmed;

3, Mechanical structure, induction double anti-pinch function, when the swing arm is in the process of resetting,

it will automatically stop or the motor will stop working within the default time, and reset again after the default

delay (until reset), and the force is very small ( ≤2Kg);

4, Sound and light alarm function: including illegal entry and trailing alarm;

5, Anti-shock function, the swing arm is automatically locked when it does not receive the opening signal;

6, Swing lever (arm) synchronization function;

7, Automatic reset function. After opening the gate, if there is no pass within the specified time, the system will

automatically cancel the user's permission to pass this time. The standard is automatic reset 5 seconds after opening;

8, The channel automatically opens after power off, and automatically closes after power on;

9, It can be connected to a variety of card readers, and can receive relay switch signals to work;

10,One-way or two-way control of personnel entry and exit;

11, Remote control and management can be realized directly through the management


Optional & Customized Function

  • Alternative Materials, Finished and Custom Design
  • Usage LED Counter function
  • Audio and visual alarm in the event of an invalid entry or exit and tailgating
  • Remote Controlled Button
  • Extra add sensors transmitter and receiver type
  • Infrared sensors reset function
  • Access Control System Integration
  • Camera System Integration
  • Thermostat System Integration
  • Card Reader mounting: Card readers may be mounted on the surface of the barrier, or the card readers may be mounted flush mounted. There is an output to interlock the card.
  • Stroboscopic alarm light prompt function: to help for site administrator to find the failure units fast and exactly.
