Swing Barrier Gate
>
|
| Place of Origin | Shenzhen, China. |
| Brand Name | SINOMATIC |
| Certification | CE/ ISO |
| Model Number | SN-SB05 |

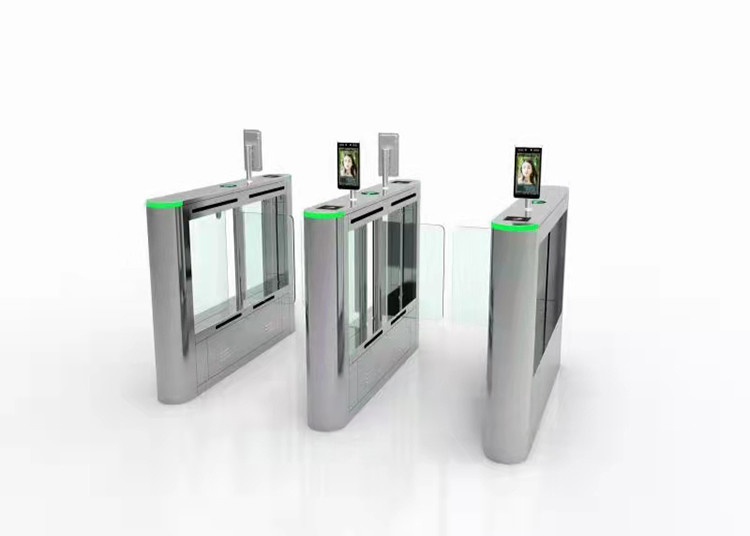

Pedestrian Facial Recognition Access Control Automatic Swing Barrier Gate Turnstile
PRODUCT DESCRIPTION
Swing gate is an intelligent channel administration device that has been carefully developed, developed and
produced over the years. It is a high-tech product primarily for intelligent administration of personnel channels.
The gadget combines mechanical, digital, microprocessor control and numerous identification applied sciences,
and is equipped with quite a lot of identification system devices and reliable efficiency safety units, alarms, direction
indicators, and extended friendliness. The LED counting display interface coordinates the clever control and
management of the channel.
Swing gate has standard enter and output interfaces, and is the best choice for system integrators. It may be simply
compatible with IC card, ID card, barcode card, fingerprint and other card reader identification units, offering civilized
and orderly access for entry and exit personnel. Methods to successfully handle personnel out and in.
FUNCTION AND FEATURES
1. Problem-self-checking function.
2. Arm Turning: Bi-direction
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in.
5. Auto-reposition function: After card read, passenger doesn’t pass within regulated time, turnstile
will cancel order automatically. And the regulated time can be set by managers.
6. Anti-rush function: if there is no open signal, arm will be holding tightly.
7. Stable running with little noise.
PRODUCT SPECS
| Item | Technicial Parameters |
| Product Name | Swing barrier,Glass Gates |
| Model | SN-SB05 |
| Brand | SINOMATIC |
| Design Size | 1200*220*1000 mm |
| Chassis Material | 304 # stainless steel |
| Relative humidity | -20 ° C ~ 60 ° C, relative humidity 5% ~ 95%, no condensation |
| Standard channel width | 600mm |
| Temperature | -20ºC-60ºC |
| Travel speed | 30 persons/min |
| Working environment | indoor and outdoor |
| Input interface |
Relay switch signal or 12V level signal or 12V pulse signal with pulse width >100ms, drive current >10mA |
| Communication Interface | RS485 (distance ≤ 1200 m), TCP / IP |
| Lane width | ≤1200mm |
| Barrier Opening/Closing Time | 0.1s |
| Automatic reset time after failure | 10 seconds |
| Swing arm transmission angle | 180 degrees |
| Thickness | 1.5mm SS304 |
| Driving Motor | 24V |
| The time required to enter the common state after power on | 3 seconds |
| Supplu Voltage | AC100V to 260V |
| Gate components | chassis, movement, control board and power supply |
| Service life | continuous opening and closing more than 3 million times |
| Structure | Frame structure / Stainless steel housing |
| Working environment | Indoor and outdoor (shed) |
| Turning of the gate | one-way / two-way |
| Drive Motor | DC brushless Motor |
FAQ
1. Do you provide OEM service?
Yes, we can offer OEM services as follows:
1) We can customize barrier gate according to your needs.
2) We can print your logo on barrier gate, and customize retail box packing and other things you need.
2. Lead time for standard item
1-50 sets: 5 working days; 50-100 sets: 7 working days; 100-500sets: 15 working days. For custom-made package
or logo, 3-10 working days longer
3. Do you provide quality guarantee/warranty and after sale service?
We have 1-year warranty. Our well-trained and passionate sales and professional engineers can provide you
with timely help.
4. What are your after-sale services?
1) For all your inquiries, response can be made within 24 hours.
2) Our company is equipped with excellent engineers and sales. We can provide you with first quality products and
the best price.
3) Our experienced engineers can guide you about how to use our products. Call our after-sales team at any time.
