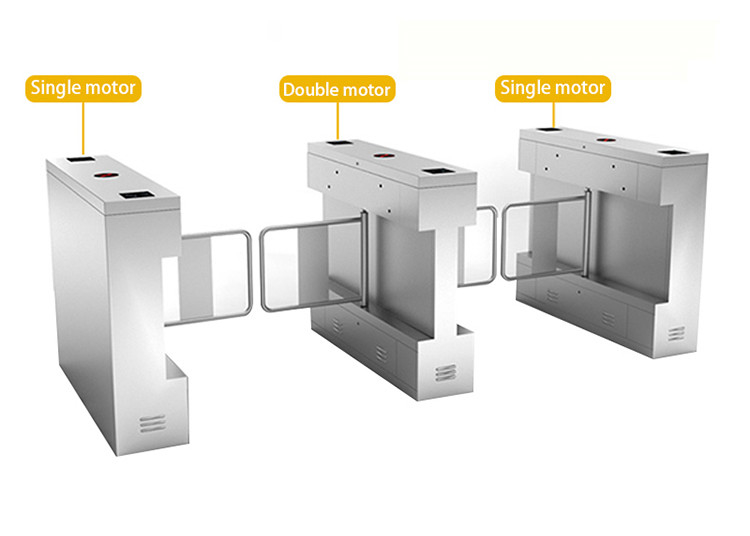

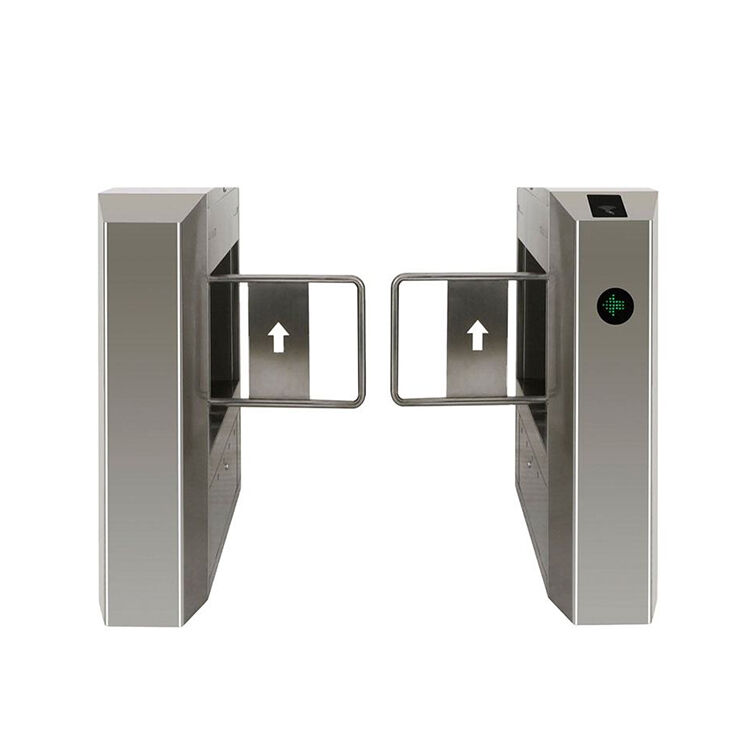

Bridge BLDC 24V Motor Swing Barrier Turnstile Anti Pinch
  • Bridge BLDC 24V Motor Swing Barrier Turnstile Anti Pinch
  • Bridge BLDC 24V Motor Swing Barrier Turnstile Anti Pinch

Bridge BLDC 24V Motor Swing Barrier Turnstile Anti Pinch

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB03
Product Details
Surface Finishing:
Wire Drawing
IP Grade:
BLDC Motor
Pass Speed:
30 Person/minute
Control Signal:
Dry Contact Or Level Signal
High Light:

24V Motor Swing Barrier Turnstile


Bridge BLDC Swing Barrier Turnstile


Swing Turnstile Gate Anti Pinch

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Bridge Type BLDC 24V Motor Automatic Supermarket Auto Swing Barrier Turnstile Gate


Product introduction:


The intelligent channel management system can adopt non-con-tact IC, ID card or bar code card identity

authentication technology, combined with mi-cro-control technology, communication technology and computer

network technology,thus realizing full-scale channel real-time monitoring and management functions such
as computer ticket sales, ticket inspection, inquiry, summary, statistics, reports, etc.




Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading

card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access

of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent

community , enterprises and institution that need intelligent access management.



Product specification


Power Requirements
AC 100 ~ 120V / 200 ~ 240V, 50 / 60Hz
Working Temperature
-20°C ~60°C
Working Humidity
5% ~ 95% (non-condensing)
Working Environment
Indoor / Outdoor (with shelter)
Lane Width (mm)
600mm to 1500mm
Infrared Sensor
Dimension (L*W*H)
1200 * 300 * 980 (mm)
Dimension with Packing (L*W*H)
1300*400* 1160(mm)
Weight with Packing (kg)
LED Indicator
Cabinet Material
SUS304 Stainless Steel
Lid Material
SUS304 Stainless Steel + Acrylic
Barrier Material
Barrier Movement




1. working method can be set by the buttons on the main panel


2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset

again after a default delay, the force 2Kg.


3.Anti-illegal in, anti-intrusion, auto close for reverse direction.


4. Anti-collision, gate closes when no valid signal is given.


5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force



6. Gates can be synchronous for multiple lanes


7.Auto-reset function.  If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable),

default time is 10s.


8. Reset function by photocells


9. Anti-pinch function by photocells


10. Swing barrier is with standard electrical interface for the integration of various readers and writers.

11. Swing barrier can count how many passenger has passed and will show it in the LED display (Optional).

12. Direction display to guide passenger which direction is to go.

13. Card-reading with memory or without memory function.

14. Swing barrier can control the population inside in the control of software



Q1. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size,

software and features.Video call available during design and communicate in time during this procedure.

Q2.Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction

video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.

Q3.What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order

quantity. We could talk about this question before final payment.
