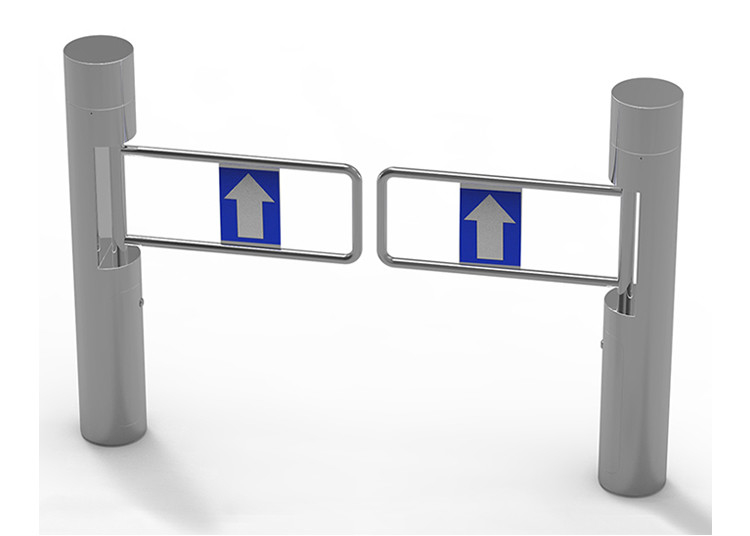

Access Control Bi Directional Swing Turnstile Gate 24VDC For Hospital
  • Access Control Bi Directional Swing Turnstile Gate 24VDC For Hospital
  • Access Control Bi Directional Swing Turnstile Gate 24VDC For Hospital
  • Access Control Bi Directional Swing Turnstile Gate 24VDC For Hospital

Access Control Bi Directional Swing Turnstile Gate 24VDC For Hospital

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB01
Product Details
Framework Material:
Arm Material:
Counter, Sensor
Pass Speed:
30 Person/minute
Motor Type:
24VDC Brushless
High Light:

Bi Directional Swing Turnstile Gate


Access Control Swing Turnstile Gate


24VDC Pedestrian Turnstile Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
3,000pcs per month
Product Description

Factory Price Access Control Full Automatic Bi-Directional Swing Turnstile For Hospital




SN-SB01 is the minimum optical swing barrier gate, single working, lower air freight cost for sample order,

with LED indicator for access, and optical swing can be extended according to project requirement.


Advantage of swing gate is the channel width can be extend easily, support motor bike bicycle and wheelchair pass.


This swing barrier is the intelligent access management produced by our company, this equipment organically

integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment.


Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety

protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control

and management by the mutual coordination.



Main function and features


1. The stylish stainless steel column and clear toughened glass wing present a bright and concise design.


2. Bi-directional opening facilitates fast and safe access. It can also be integrated with recognition systems

for user friendly access control.


3. Featured with high security and stability, it’s suitable for banks, corporate headquarters, airports and leisure


4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).

7.Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.

10. Gate can be set as normally open or normally closed.


11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.

16. Support infrared photocell for anti-pinch and reset function.


Technical Specifications


Framework material SS304/SS316
Dimension Colunm diameter:168mm, height 1050mm
Power supply AC 220V/110V±10%
Motor voltage DC24V (Brush-less motor)
Access device input Relay Signal (Dry contact)
Optimal flow rate at least 30 person/minute
Gate swing angle 90 deg per side
Gate opening/closing speed 1s
Reset time when power on 3s
Arm material acrylic/ SS304
Arm length around 730mm for one leaf
Arm max. bearing 30KG
Working environment Indoor/outdoor with shelter
Working temperature -15°C~80°C
Relative humility ≤95%, Non condensation
Communication interface RS485 standard(distance ≤ 1200m)


Product Application

The brush-less anti-collision swing barrier is an intelligent passage management equipment developed

and produced by our company. It integrates the exquisite mechanical transmission, microprocessor

control, voice and various reading and writing technologies. By configuring different reading and

writing equipment, the intelligent control and management of the passage can be completed. The

machine can realize the public channel's dissuade and access control
