RFID Control Full Height Sliding Flap Turnstile Gate Face Recognition
  • RFID Control Full Height Sliding Flap Turnstile Gate Face Recognition
  • RFID Control Full Height Sliding Flap Turnstile Gate Face Recognition

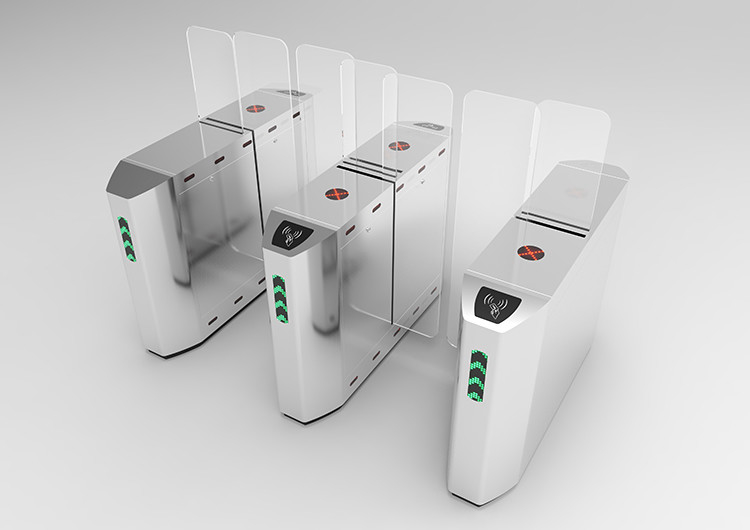

RFID Control Full Height Sliding Flap Turnstile Gate Face Recognition

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SLB02
Product Details
Housing Material:
304 Grade Stainless Steel
Surface Treatment:
Brushed Finish
Service Life:
5 Million Times
Arm Material:
Lane Width:
High Light:

Full Height Flap Turnstile Gate


Sliding Flap Turnstile Gate


Face Recognition Pedestrian Turnstiles Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T or western Union
Supply Ability
1,000 pcs per month
Product Description



Full height sliding barrier is designed to control pedestrians entering or exiting restricted areas, usually

used of high pedestrian traffic flow in both directions.


The body is made from brushed stainless steel which creates a seamless and elegant access point to

blend into most indoor environment.

It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint

and Biometric device).


In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.

Optical Turnstiles are suit for elegant and luxury entrance solutions.






1. Functions of breakdown self-checking and alarm warning, very convenient for customers’ maintenance

    and use.


2. Program operation mode of equipments through the little button inside the main board.


3. Double Anti-Pinch function from both machine structure and induction. Stops automatically if there is

    something in the way during the return/rest of the doors. If there is default time delay, it will have its second

    return (till it comes back to where it should be), and the force is very weak


4. Anti-rushing function: without having received the signal of opening up, the doors lock automatically.


5. Doors can be adjusted into synchronization (only for double-locks)


6. Automatic returning/resetting function: when the barriers open up, if people do not pass by within the time

    allowed, system will cancel the right of pass for this time.


7. Adjust it to normal open or normal closed to meet the different requirements of different fields.


8. Can be linked to many kinds of card-reading equipments and work when it has received the signal of

    electricity relay switch.


9. One-way and two-way in and out control of passenger


10. Carry out distant control and management by directly operating computer.


11. Automatic returning /resetting when there is time delay. Normally speaking, it returns/resets five seconds

     after its opening.


12. When the electricity is cut off, the access opens automatically, and closes automatically when the electricity

     is linked. Meet the requirements of fire-fighting.


13. Sound and lights alarming: including break-in and opposite direction intrusion, and so on.


14. Counting function (optional)


15. Anti-Pinch function (four pairs of infrared)


Product specifications


Structure parameters
Housing material 304 grade stainless steel
Thickness 1.5mm
Surface treatment Brushed finish
Arm material Acrylic
Technical parameters
Size 1200x330x1000mm
Lane width ≤550mm
Passing speed 30 people/min
Open/close speed 0.1--0.6sec
Weight 60KG
infrared sensors 4 pairs
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -20 to 60℃
Relative humidity 5% to 95%
Package Wooden case
Electronic parameters
Power supply 100-240V/AC, 50/60HZ
Rated power 100W
Input signal Dry contact
Driving motor Brushless motor
Method of position Limiter



RFID Control Full Height Sliding Flap Turnstile Gate Face Recognition 0
