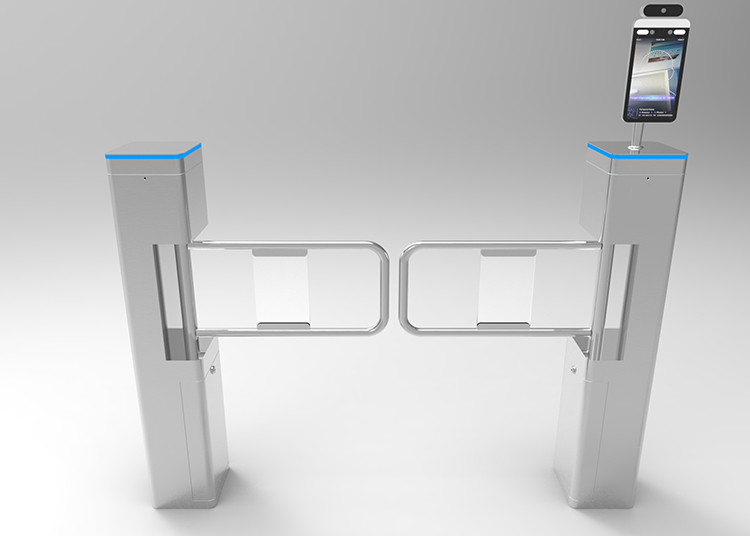

SUS304 Face Recognition Pedestrian Swing Barrier Square 1.5s
Place of Origin | Shenzhen, China. |
---|---|
Brand Name | SINOMATIC |
Certification | CE/ ISO |
Model Number | SN-SB02M |
Minimum Order Quantity | Sample order accepted |
Price | negotiable |
Packaging Details | Carton/Plywood box/Pallet |
Delivery Time | 5-10 working days after payment received |
Payment Terms | T/T, Western Union, MoneyGram, L/C, D/A, D/P |
Supply Ability | 3,000pcs per month |
Product Name | Slim Swing Barrier | Shape | Square |
---|---|---|---|
Frame Material | SS304 | Arm Material | Acrylic/SS304 |
Arm Lenght | Max. 800mm For Single Unit | Housing Material | SUS304 |
High Light | Face Recognition Pedestrian Swing Barrier,SUS304 Pedestrian Swing Barrier,1.5s Access Control Swing Gate |
Square Slim Swing Barrier Face Recognition Office Building Access Control Supermarket Gate
Description
The swing barrier provides a reliable and effective method to ensure that only authorized users are allowed to
access every area of the building. It meets the fire emergency requirements, all channels are opened for power
failure, and there is an independent fire alarm interface. The compact unit makes it easy to construct a
multi-channel setup, while the multiple colors allow you to perfectly match this turnstile to your hall or brand.
Application
SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user or user
with big luggage. SWB100 is suitable for low traffic light duty application.
SN-SB02M is for indoor usage and also outdoor usage(with shelter)
Specifications of Pedestrian Swing Gate:
Description | Specification |
Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor voltage | DC 24V (brush motor) |
Flow rate | 30 person per minute |
Gate swing angle | 180 degree |
Gate opening speed | 1.5s |
Reset time when power on | 3s |
Working temperature |
-20°C~60°C |
Features of Pedestrian Swing Gate:
- Support bi-directional opening
- Can integrate with access control system.
- Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
- Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
- During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
- Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
- Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
- Gate length can be easily customized to fit site requirement.
- Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
- Gate motor mechanism is self lock at open and close position.
