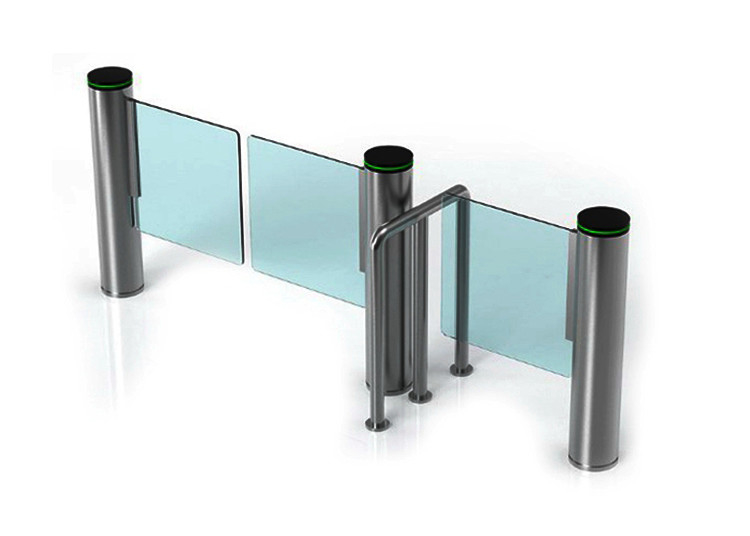

200W DC24V Brushless Motor Pedestrian Security Gates 0.4S
|Place of Origin||Shenzhen, China.|
|Minimum Order Quantity||Sample order accepted|
|Packaging Details||Carton/Plywood box/Pallet|
|Delivery Time||5-10 working days after payment received|
|Payment Terms||T/T or western Union|
|Supply Ability||500 pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Protect Level||IP54||Communication Connection||RS485|
|Direction||Bi-directional||Service Life||5 Million Times|
|Max Power Consumption||200W||Barrier Material||Acrylic Glass, SS304|
Brushless Motor Pedestrian Security Gates,
200W Pedestrian Security Gates,
0.4S Subway Station Swing Gate
Subway Station Rapid Identification Technique DC 24V Brushless Motorpedestrian Security Gates
1. Turning the whole Gate
2. RS485 Communication
3. DC Brushless motor
Integrated swing barrier, which usually used in conjunction with turnstiles, pedestrian security gates are designed to provide authorized access to the handicap and disabled or delivery carts and dollies .
SN-IPS10 offers a solution which can secure disabled access or access to wheelchairs and carts in a limited space. This simple access
gate consists of a stainless steel column with a single glass/Acrylic barrier that can be operated by an access control system such as
a card reader or biometric device or from a nearby reception or security desk.
SN-IPS10 is available with different height glass barriers to increase the level of security.
Its design complements our range of Turnstile and Barriers. It is therefore very suitable as disabled access in combination with a bank of
advanced secured entry solutions
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent force passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
10) The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.(This model not inlucde sensor)
11) The processing mode in emergency or in special conditions.
12) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end
13) Super combination capability, with the combined application of products of different passage types and series, not affecting
the system performance.
Shenzhen, Guangzhou etc
T/T /Western union/ MoneyGram
7 to 10 days
1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.
2.What is your flap gates opening and closing time ?
-------- <=0.4s .
3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)
4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .
5.What's you warranty?
-------- 1 year warranty at least
