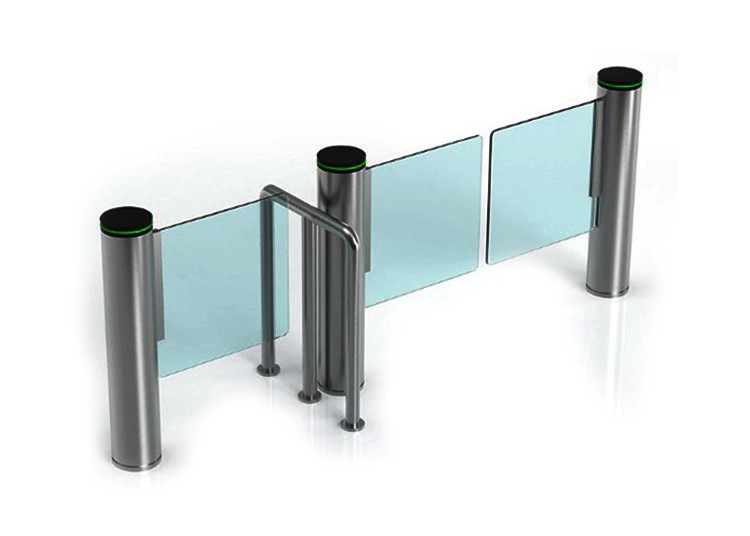

Cylindrical Self Closing 200W SS304 Fast Lane Swing Barrier

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-ISB10
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T or western Union
Supply Ability 500 pcs per month
Product Details
Power AC220V±10V,110V±10V,50/60HZ Barrier Material SS304 Or Acrylic
Direction Bi-directional Service Life 5 Million Times
IP Rate IP54 Max Power Consumption 200W
High Light

SS304 Fast Lane Swing Barrier


200W Fast Lane Swing Barrier


Cylindrical Self Closing Swing Gate

Leave a Message
Product Description

Cylindrical Security System Self Closing Fast lane Swing Barrier Speed Gate Suppliers



Pillar Swing Gate Single core swing gate
1. Turning the whole Gate
2. RS485 Communication
3. DC Brushless motor




Integrated swing barrier, which usually used in conjunction with turnstiles, pedestrian security gates are designed to provide authorized access to the handicap and disabled or delivery carts and dollies .


SN-IPS10 offers a solution which can secure disabled access or access to wheelchairs and carts in a limited space. This simple access
gate consists of a stainless steel column with a single glass/Acrylic barrier that can be operated by an access control system such as
a card reader or biometric device or from a nearby reception or security desk.


SN-IPS10 is available with different height glass barriers to increase the level of security.
Its design complements our range of Turnstile and Barriers. It is therefore very suitable as disabled access in combination with a bank of
advanced secured entry solutions











Flap lenght
600mm to 1000mm
Flow Speed
Normally closed-30 persons/min
DC Brushless motor
Infrared Sensors
Not included
Working Environment
indoor and outdoor(added the rainshed )
Communication Distance
Input Connection
+12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
Communication Connection
RS485 Communication
Housing dimension




Housing material
Flap material
SS304 or Acrylic
Running Life
5 Million(Continuous Opening and Closing Operation)
Protect Level
Stainless Steel Brushed / PowderCoating(Optional), or other Colour you like
Operation Place
Subway Station, Hoverport, TourismSports,Exhibition, SwimmingHall,Residence Area,Enterprise's Entrance and ExitAttendance,Gateway Guard,Charge Management,Special Access Control area.


Cylindrical Self Closing 200W SS304 Fast Lane Swing Barrier 0


Functions& Features


1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.


2) DC Brushless Motor, Maintenance Free


3) On-line or off –line mode(optional)


4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation


5) With direction indication, guiding passenger to entry and exit.


6) Self automatic locking to prevent force passing without the card


7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000


8) Light and sound alarm indication function, preventing illegal entry or irregular passing


9) Powerful on-line intelligent control mode, facilitating you

A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

B) To set up operation mode for passage entry and exit.

C) To read card with multiple times, the special function meeting the application requirements of a particular site.

D) To set up the card reading with or without memory.

E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

F) Setting function humanized for reset of over time passing.




Cylindrical Self Closing 200W SS304 Fast Lane Swing Barrier 1



Cylindrical Self Closing 200W SS304 Fast Lane Swing Barrier 2



 1 set


 Shenzhen, Guangzhou etc

Payment terms

 T/T /Western union/ MoneyGram

Producing capacity

 1000 Sets/Month

Leading time

 7 to 10 days





1.What is your products biggest advantage?
-------- DC Brushless Motor , no maintenance all the of life, No Attrition, Low Noise ,Hight Intelligence.

2.What is  your flap gates opening and closing time ?
-------- <=0.4s .

3.What is the Swing barrier gate Working environment ?
-------- They can be used indoor and outdoor(with shelter)

4. Can I customize it ?
--------Yes, Welcome . We are the manufacturer , We are welcome OEM .

5.What's you warranty?
-------- 1 year warranty at least
