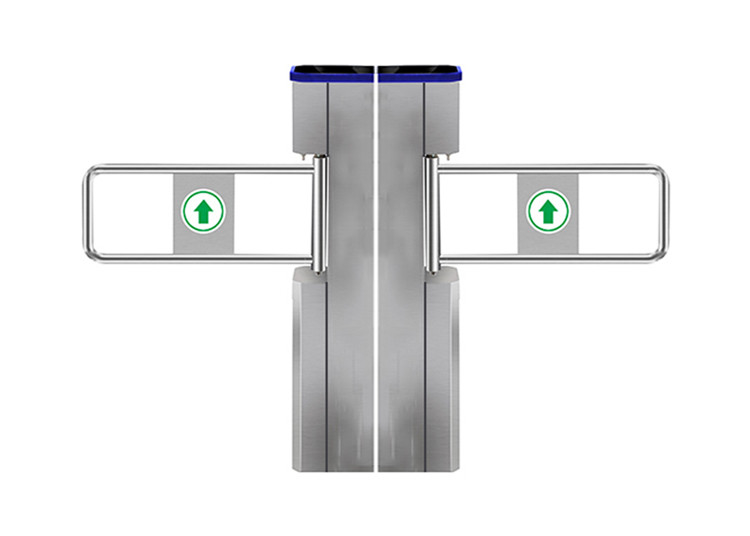

RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier
  • RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier
  • RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier
  • RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier

RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier

Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02M
Product Details
Lane Width:
900mm For Single Unit
Size:
200*200*1000mm
Motor:
DC Motor
Motor Type:
Brushless
Motor Voltage:
20x20x100cm
Top Cover:
Acrylic With LED Light
High Light:

SS304 Swing Arm Barrier

,

900mm Lane Swing Arm Barrier

,

LED Indicator Pedestrian Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Price
negotiable
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Square footprint Automatic SUS304 DC24V Swing Barrier Turnstile with top LED indicator



Functions



1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;



2.In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.



3.The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.



4.Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.



5.The bicycle delay function: prevent the gate from hitting the bicycle;



6.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.



7.The mode of choice: to meet the different requirements, it can be set up as a two-way card or a one-way card and free pass.



8.Various control functions: external button, remote control, bar code, IC or ID, etc.



9.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.



10.Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.



PRODUCT PHOTO

RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier 0RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier 1RS485 LED Indicator 900mm Lane SS304 Swing Arm Barrier 2





product parameters
Framework material 304 stainless steel
Framework MaterialThickness 1.2mm
Framework Surface treatment Brushed finish
Barrier material Acrylic / SS304
Technical parameters
Framework Size 200*200*1000mm
Lane width 550--800mm for single unit
Passing speed 30-40 people/min
Open/close speed 0.5 sec
Weight 20KG
Turning angle 90 degree
infrared sensors Optional
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -20 to 60℃
Relative humidity 5% to 95%
Package Carton box for sample,Wooden case is optional
Electronic parameters
Power supply 110-220V/AC, 50/60HZ
Rated power 100W
Input signal Dry contact
Driving motor DC brushless motor
Method of position Encoder to make sure accurate position





MAIN FEATURES


1. Stainless steel housing, rain-proof, novel and beautiful.


2. The electric control adopts brushless motor to drive stable and reliable, and has low failure rate.


3. Length of arm: Valid lenght from around 800mm


4. Fault detection and alarm functions, easy to use and maintenance.


5. The running status can be programmed and controlled with the built-in keyboard on the main board.


6. Support infrared photocell for anti-pinch and reset function.


7. Anti-breakthrough function. The gate is locked automatically until opening signal received.


8. Synchronization functions (for dual gate equipment).


9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the
authority of the current user automatically.



10. Gate can be set as normally open or normally closed.


11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


12. Direction can be set as unidirectional or bidirectional.


13. The device can be connected to management computer to realize remote control and management.


14. LED direction indicator (optional)


15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
