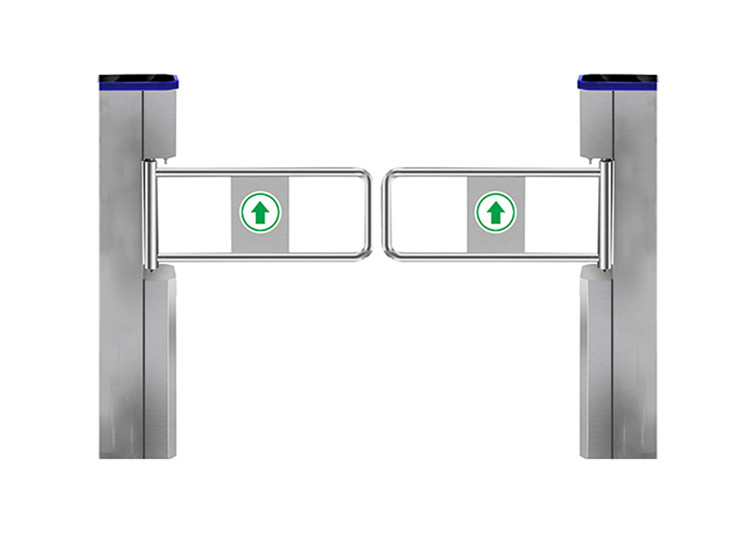

SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator
  • SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator
  • SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator
  • SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator

SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator

Place of Origin Shenzhen, China.
Certification CE/ ISO
Model Number SN-SB02M
Product Details
Lane Width:
DC Motor
Motor Type:
Motor Voltage:
Top Cover:
Acrylic With LED Light
High Light:

DC24V Swing Barrier Turnstile


SUS304 Swing Barrier Turnstile


RS232 Stainless Steel Swing Gate

Payment & Shipping Terms
Minimum Order Quantity
Sample order accepted
Packaging Details
Carton/Plywood box/Pallet
Delivery Time
5-10 working days after payment received
Payment Terms
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability
3,000pcs per month
Product Description

Square footprint Automatic SUS304 DC24V Swing Barrier Turnstile with top LED indicator



All the gates models are space efficient security barrier gate, with a compact design, yet offer sufficient space to integrate any access control system.


They can be mounted with display, passage counter,card reader,token operation traffic lights,command console,alarm system against unauthorized entries,interfaced with a PC through a RS232(RS485,TCP-IP) line.


The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations.Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in.for example,a reception area.


Our gates are used in applications including stadiums and arenas,perimeter and interior security,recreation and amusement parks,retail crowd control,transit fare collection and lobby access control.



SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator 0SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator 1SUS304 DC24V Swing Barrier Turnstile RS232 With LED Indicator 2


Structure parameters
Housing material 304 grade stainless steel
Thickness 1.2mm
Surface treatment Brushed finish
Arm material Acrylic / SS304
Technical parameters
Size 200*200*1000mm
Lane width 550--800mm for single unit
Passing speed 30-40 people/min
Open/close speed 0.5 sec
Weight 20KG
Turning angle 90 degree
infrared sensors Optional
MCBF 5.000.000 times
Application Indoor or outdoor
Rotating directional Single way or Bi-directional adjustable
Noise <55db
Operating temperature -20 to 60℃
Relative humidity 5% to 95%
Package Carton box for sample,Wooden case optional
Electronic parameters
Power supply 110-220V/AC, 50/60HZ
Rated power 100W
Input signal Dry contact
Driving motor DC brushless motor
Method of position Encoder to make sure accurate position





1. Innovative design and exquist maching to meet the high end access control solution


2. Fast pass speed Turnstile to ensure an orderly access of 30-40 people per minute


3. SS 304 Stainless Steel anti-fingerprint


4. Brushless Motor to make it a good performance


5. Easy operation and free maintenance


6. 12 month product warranty.


7. Custom design shape and logo, for large amount, custom logo available for free.


8. Supported by professional engineers.


9. Special discount of our distributors or agents in their area.


10. Packing in carton for sample, can pack it by wooden case for bulk order with better protection grade.




1. Stainless steel housing, rain-proof, novel and beautiful.

2. The electric control adopts brushless motor to drive stable and reliable, and has low failure rate.

3. Length of arm: Valid lenght from around 800mm

4. Fault detection and alarm functions, easy to use and maintenance.

5. The running status can be programmed and controlled with the built-in keyboard on the main board.

6. Support infrared photocell for anti-pinch and reset function.

7. Anti-breakthrough function. The gate is locked automatically until opening signal received.

8. Synchronization functions (for dual gate equipment).

9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the
authority of the current user automatically.


10. Gate can be set as normally open or normally closed.

11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)

12. Direction can be set as unidirectional or bidirectional.

13. The device can be connected to management computer to realize remote control and management.

14. LED direction indicator (optional)

15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
