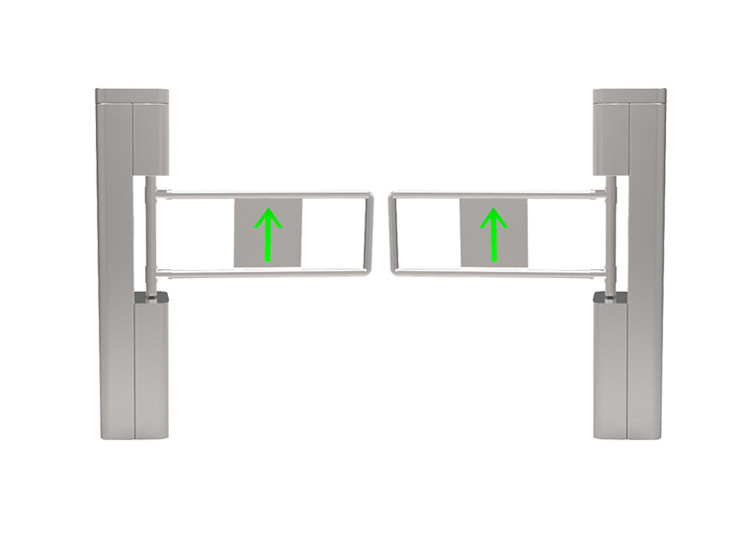

800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V

  • 800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V
  • 800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V
  • 800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02M
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frame Material SS304 Barrier Materia SS304/Acrylic
Motor Voltage DC 24V Arm Lenght Max. 800mm For Single Unit
Dimension Of Housing 20x20x100cm Top Cover SS304/Acrylic Optional
High Light

RFID Face Recognition Swing Gate

,

SS304 Face Recognition Swing Gate

,

800mm Arm Swing Gate Barrier
Leave a Message
Product Description

Supermarket 304 Stainless Steel RFID and Face Recognition Auto sense Swing Barrier gate equipment



PRODUCT PRODUCTION


Swing barrier model SN-SB02M is an automatic motorized stainless steel square swing barrier.



SN-SB02M footprint is very small, with lenght and width both of 20cm, it has small installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through with comfort. Swing barrier compact size help to save space and can fit into narrow places.





SPOTLIGHTS



1. Innovative design and exquist maching to meet the high end access control solution



2. Fast pass speed Turnstile to ensure an orderly access of 30-40 people per minute



3. SS 304 Stainless Steel anti-fingerprint



4. Brushless Motor to make it a good performance



5. Easy operation and free maintenance



6. 12 month product warranty.



7. Custom design shape and logo, for large amount, custom logo available for free.



8. Supported by professional engineers.



9. Special discount of our distributors or agents in their area.



10. Packing in carton for sample, can pack it by wooden case for bulk order with better protection grade.





PARAMETERS



Description Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Power consumption 100W
Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Flow rate 30 person per minute
Gate swing angle 180 degree
Gate opening speed 1s
Reset time when power on 3s
Working temperature

-20°C~60°C





APPLICATION

800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V 0



PRODUCT PHOTO

800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V 1800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V 2

800mm Arm SS304 RFID Face Recognition Swing Gate AC 220V 3





MAIN FEATURES


1. Stainless steel housing, rain-proof, novel and beautiful.


2. The electric control adopts brushless motor to drive stable and reliable, and has low failure rate.


3. Length of arm: Valid lenght from around 800mm


4. Fault detection and alarm functions, easy to use and maintenance.


5. The running status can be programmed and controlled with the built-in keyboard on the main board.


6. Support infrared photocell for anti-pinch and reset function.


7. Anti-breakthrough function. The gate is locked automatically until opening signal received.


8. Synchronization functions (for dual gate equipment).


9. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the
authority of the current user automatically.



10. Gate can be set as normally open or normally closed.


11. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Via dry contact signal)


12. Direction can be set as unidirectional or bidirectional.


13. The device can be connected to management computer to realize remote control and management.


14. LED direction indicator


15. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
