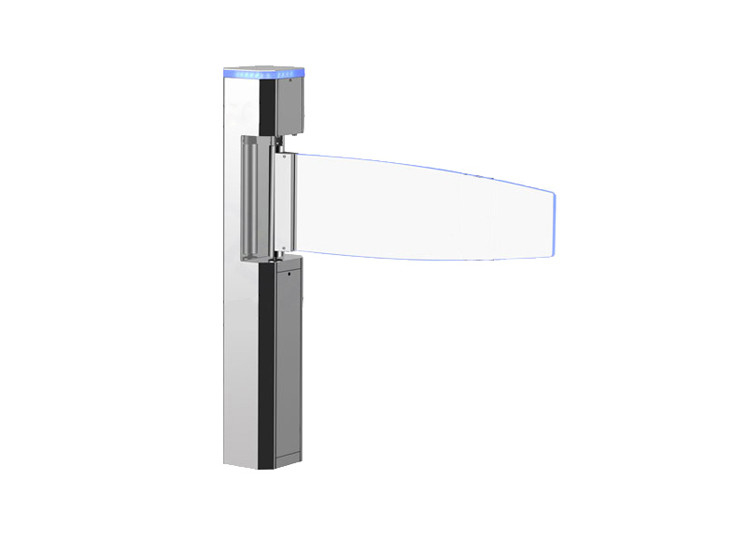

Bi Directional SS304 1.5s 10mA Access Control Swing Gate

  • Bi Directional SS304 1.5s 10mA Access Control Swing Gate
  • Bi Directional SS304 1.5s 10mA Access Control Swing Gate
  • Bi Directional SS304 1.5s 10mA Access Control Swing Gate
Place of Origin Shenzhen, China.
Brand Name SINOMATIC
Certification CE/ ISO
Model Number SN-SB02M
Minimum Order Quantity Sample order accepted
Price negotiable
Packaging Details Carton/Plywood box/Pallet
Delivery Time 5-10 working days after payment received
Payment Terms T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability 3,000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Direction Bi-directional Application Indoor/ Outdoor With Tent
Shape Square Frame Material SS304
Arm Material Acrylic/SS304 Arm Lenght Max. 800mm For Single Unit
High Light

10mA Access Control Swing Gate

,

1.5s Access Control Swing Gate

,

SS304 Bi Directional Swing Gate
Leave a Message
Product Description

Modernized Access Control Mechanical indoor outdoor use Square Swing Gate motor and control



Introduction of Pedestrian Swing Gate:



Swing barrier model SN-SB02M is an automatic motorized stainless steel square swing barrier. SN-SB02M has small installation footprint while offering widest opening clearance to allow big boxes, trolley, wheelchair, baby stroller or user with big luggage to pass through
with comfort. Swing barrier compact size help to save space and can fit into narrow places.



Application


SN-SB02M is typically used together with flap barrier or turnstile as manual lane for handicapped user or user
with big luggage. SWB100 is suitable for low traffic light duty application.
SN-SB02M is for indoor usage and also outdoor usage(with shelter)





Specifications of Pedestrian Swing Gate:



Description Specification
Power supply AC220±10%V 50Hz/AC110±10% 60Hz
Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA
Motor voltage DC 24V (brush motor)
Flow rate 30 person per minute
Gate swing angle 180 degree
Gate opening speed 1.5s
Reset time when power on 3s
Working temperature

-20°C~60°C





PRODUCT PHOTO

Bi Directional SS304 1.5s 10mA Access Control Swing Gate 0

Bi Directional SS304 1.5s 10mA Access Control Swing Gate 1

Bi Directional SS304 1.5s 10mA Access Control Swing Gate 2



Features of Pedestrian Swing Gate:

  • Support bi-directional opening
  • Can integrate with access control system.
  • Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on swing barrier control panel.
  • Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control swing barrier opening and closing time.
  • During power failure, swing barrier will automatically open up to allow free access. When power resume, swing barrier will automatically close back to resume security level.
  • Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control panel from being damaged due to overload.
  • Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way. This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
  • Gate length can be easily customized to fit site requirement.
  • Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close at the same time.
  • Gate motor mechanism is self lock at open and close position.






Case of Pedestrian Swing Gate

Bi Directional SS304 1.5s 10mA Access Control Swing Gate 3
